HeadHat Plate

Equipo Santa & Cole

2013

HeadHat Plate

Biographies

Santa&Cole_Team-2

Equipo Santa & Cole

Comprising the people who work in Santa & Cole s technical department, led by the editors, the Santa & Cole Team s signature is featured in all our own designs. Some examples are the Trípode G5 lamp (1997), the HeadLed system (2013), the Arne streetlamp (2013) and its indoors version the Arne Domus (2015), the Sisisí system (1994) and the Básica lamp (1984), to name a few.

Read more

Equipo Santa & Cole

 |  2013
Pendant lamps

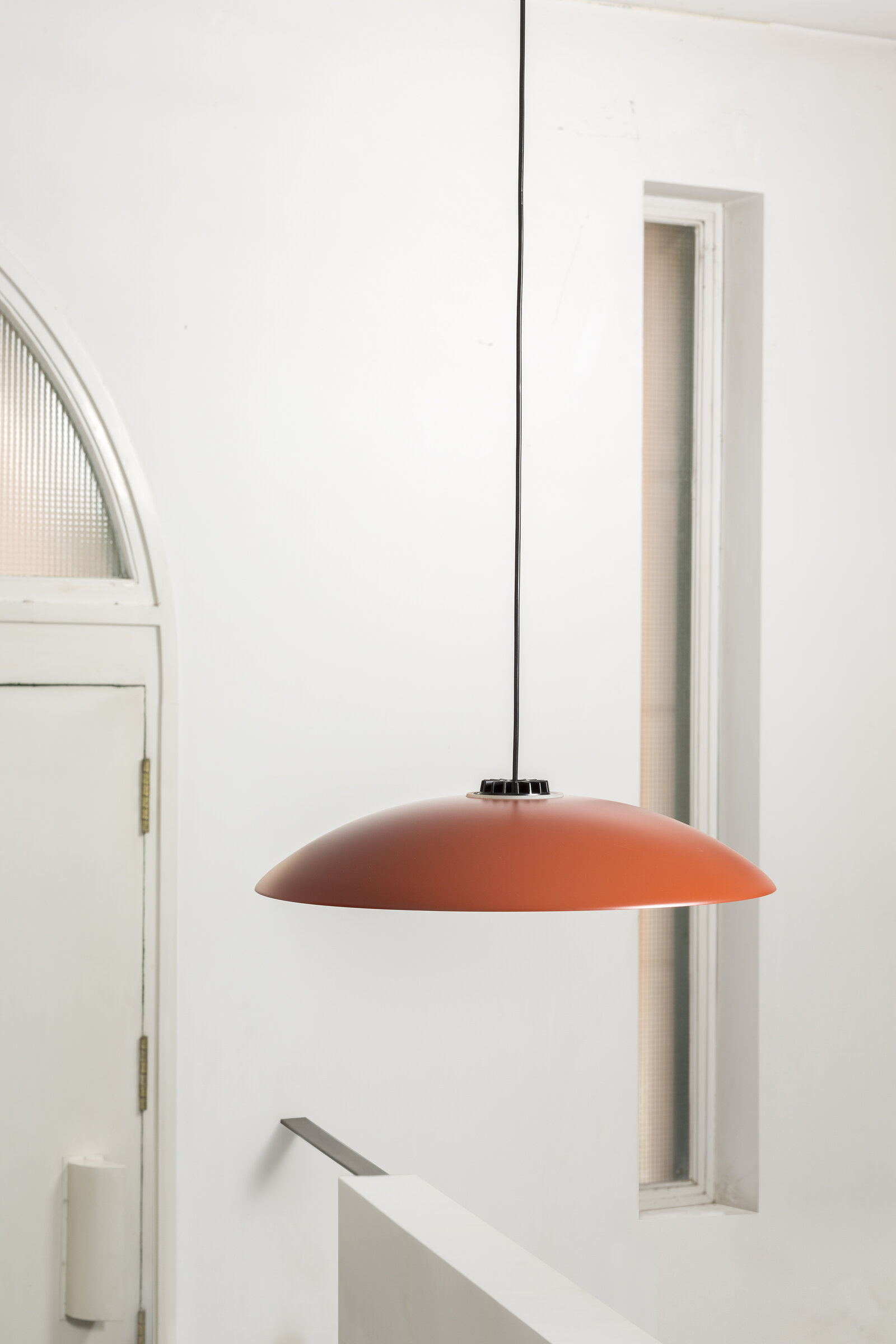

At Santa & Cole we have developed a LED system that adapts to different shades, just as  the Edison thread does. Hence, a single head can be combined with various hats. The polished metal shades project general, glare-free lighting, and the wider their diameter the more the light spreads.

Delivery within 2 to 4 weeks


Dimension plane


Overview

Capsule with LED module, translucent white diffuser and heat sink with matte black finish.
White or hematite red metallic shade with matte finish. Diffuser in white translucent methacrylate.
White or black surface-mounted metal circular canopy with matte finish.

Suitable for dimming 1-10V. (Not included external dimmer switch 1-10V).

Suitable for Junction Box (UL market).
Electric cable length: 3 m / 117.9"
Weight: 3 kg / 6.6 lib

Light sources

Light sources included: Built-in LED:. Output 3,7 W / Input: 108 ~ 264 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 416 lm
C.E.E. E.

Dimmable: Built-in LED. Output 7,7 W / Input: 90 ~ 305 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 752 lm
C.E.E. F.

Built-in LED:. Output 7,7 W / Input: 90 ~ 305 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 752 lm

Dimension plane


Overview

Capsule with LED module, translucent white diffuser and heat sink with matte black finish.
White or hematite red metallic shade with matte finish. Diffuser in white translucent methacrylate.
White or black surface-mounted metal circular canopy with matte finish.

Suitable for dimming 1-10V. (Not included external dimmer switch 1-10V).

Suitable for Junction Box (UL market).
Electric cable length: 3 m / 117.9"
Weight: 1.9 kg / 4.18 lib

Light sources

Light sources included: Built-in LED:. Output 3,7 W / Input: 108 ~ 264 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 416 lm
C.E.E. E.

Dimmable: Built-in LED. Output 7,7 W / Input: 90 ~ 305 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 752 lm
C.E.E. F.

Built-in LED:. Output 7,7 W / Input: 90 ~ 305 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 752 lm

Dimension plane


Overview

Capsule with LED module, translucent white diffuser and heat sink with matte black finish.
White or hematite red metallic shade with matte finish. Diffuser in white translucent methacrylate.
White or black surface-mounted metal circular canopy with matte finish.

Suitable for dimming 1-10V. (Not included external dimmer switch 1-10V).

Suitable for Junction Box (UL market).
Electric cable length: 3 m / 117.9"
Weight: 1.5 kg / 3.3 lib

Light sources

Light sources included: Built-in LED:. Output 3,7 W / Input: 108 ~ 264 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 416 lm
C.E.E. E.

Dimmable: Built-in LED. Output 7,7 W / Input: 90 ~ 305 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 752 lm
C.E.E. F.

Built-in LED:. Output 7,7 W / Input: 90 ~ 305 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 752 lm

We offer the possibility of adapting our products to the requirements of your contract project, modifying them to your needs. All customisations shall be studied upon request respecting the minimum quantity required. Contact us for customisations inqueries.

    HEADHAT_Difusor_metacrilato_6HAT01-O1-O1-O1

    Difusor cilíndrico metacrilato blanco

    HeadLed_Floron_HEF02_HEFD02_HEFD02-DALI-O1-O1-O1

    Circular metal canopy: white surface dimmable dali.

    HeadLed_Floron_HEF02_HEFD02_HEFD02-DALI-O1-O1-O1

    Circular metal canopy: white surface dimmable 1-10v.

    HeadLed_Floron_HEF01_HEFD01_HEFD01-DALI-O1-O1

    Circular metal canopy: black surface dimmable dali.

    HeadLed_Floron_HEF01_HEFD01_HEFD01-DALI-O1-O1-O1

    Circular metal canopy: black surface dimmable 1-10v.

    headhat_plate_L_pantalla_metalica_rojo_hematita_HATL05-O1-O1

    Pantalla metálica rojo hematita

    headhat_plate_L_pantalla_metalica_blanca_HATL02-O1-O1

    Pantalla metálica blanca

    HEADHAT_Difusor_metacrilato_6HAT01-O1-O1-O1

    Difusor cilíndrico metacrilato blanco

    HeadLed_Floron_HEF02_HEFD02_HEFD02-DALI-O1-O1-O1

    Circular metal canopy: white surface dimmable dali.

    HeadLed_Floron_HEF02_HEFD02_HEFD02-DALI-O1-O1-O1

    Circular metal canopy: white surface dimmable 1-10v.

    HeadLed_Floron_HEF01_HEFD01_HEFD01-DALI-O1-O1

    Circular metal canopy: black surface dimmable dali.

    HeadLed_Floron_HEF01_HEFD01_HEFD01-DALI-O1-O1-O1

    Circular metal canopy: black surface dimmable 1-10v.

    headhat_plate_M_pantalla_metalica_rojo_hematita_HATM05-O1-O1

    Pantalla metálica rojo hematita

    headhat_plate_M_pantalla_metalica_blanca_HATM02-O1-O1

    Pantalla metálica blanca

    HEADHAT_Difusor_metacrilato_6HAT01-O1-O1-O1

    Difusor cilíndrico metacrilato blanco

    HeadLed_Floron_HEF02_HEFD02_HEFD02-DALI-O1-O1-O1

    Circular metal canopy: white surface dimmable dali.

    HeadLed_Floron_HEF02_HEFD02_HEFD02-DALI-O1-O1-O1

    Circular metal canopy: white surface dimmable 1-10v.

    HeadLed_Floron_HEF01_HEFD01_HEFD01-DALI-O1-O1

    Circular metal canopy: black surface dimmable dali.

    HeadLed_Floron_HEF01_HEFD01_HEFD01-DALI-O1-O1-O1

    Circular metal canopy: black surface dimmable 1-10v.

    headhat_plate_S_pantalla_metalica_rojo_hematita_HATS05-O1-O1

    Pantalla metálica rojo hematita

    headhat_plate_S_pantalla_metalica_blanca_HATS02-O1-O1

    Metallic lampshade: white.
