Lámina 45 / 85
2018
Lámina 45 / 85
Biographies
Antoni Arola
Antoni Arola was awarded the Spanish National Design Prize in 2003, and he is recognised as one of the most outstanding members of Spanish design. His common-sense approach has allowed him to create a range of brilliant designs, from a perfume bottle or a lamp, to large scale interior design projects. Arola finds both symbolism and particular a way of understanding the universe through foreign cultures, such as African ones, which he incorporates into his work and his daily life. His works also show his sculptural savoir-faire, his love for drawing and his interest for contemporary art.

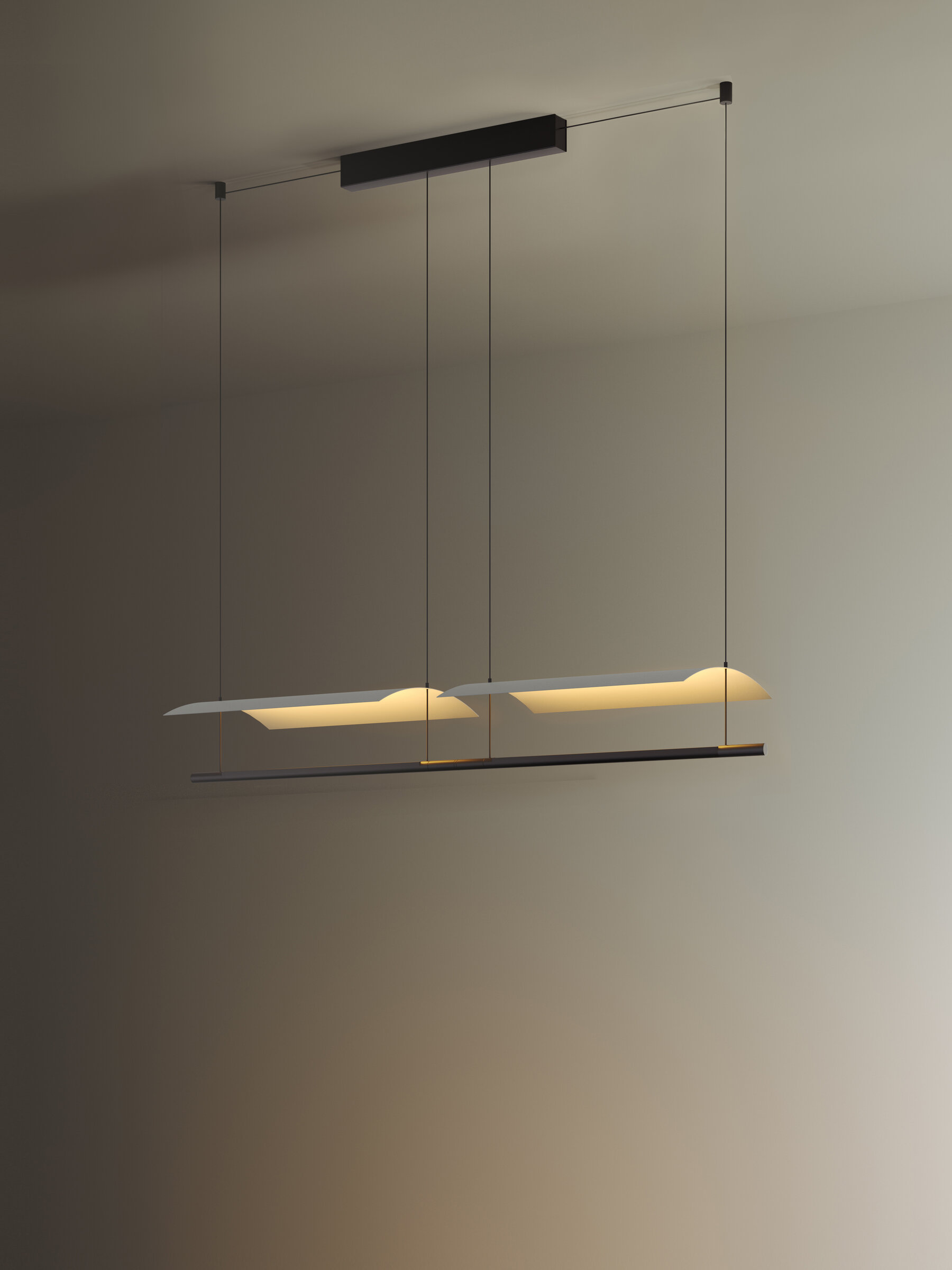

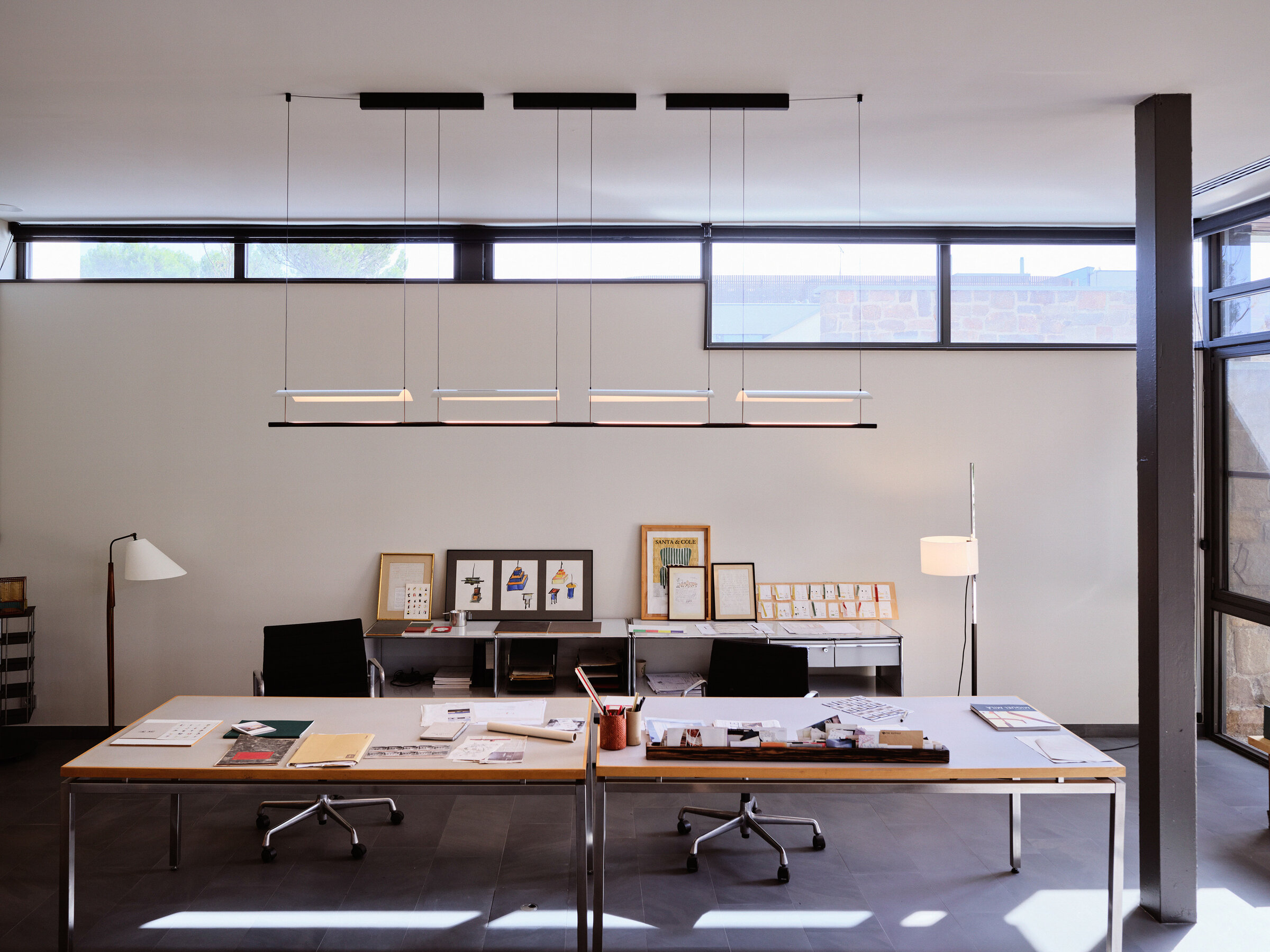

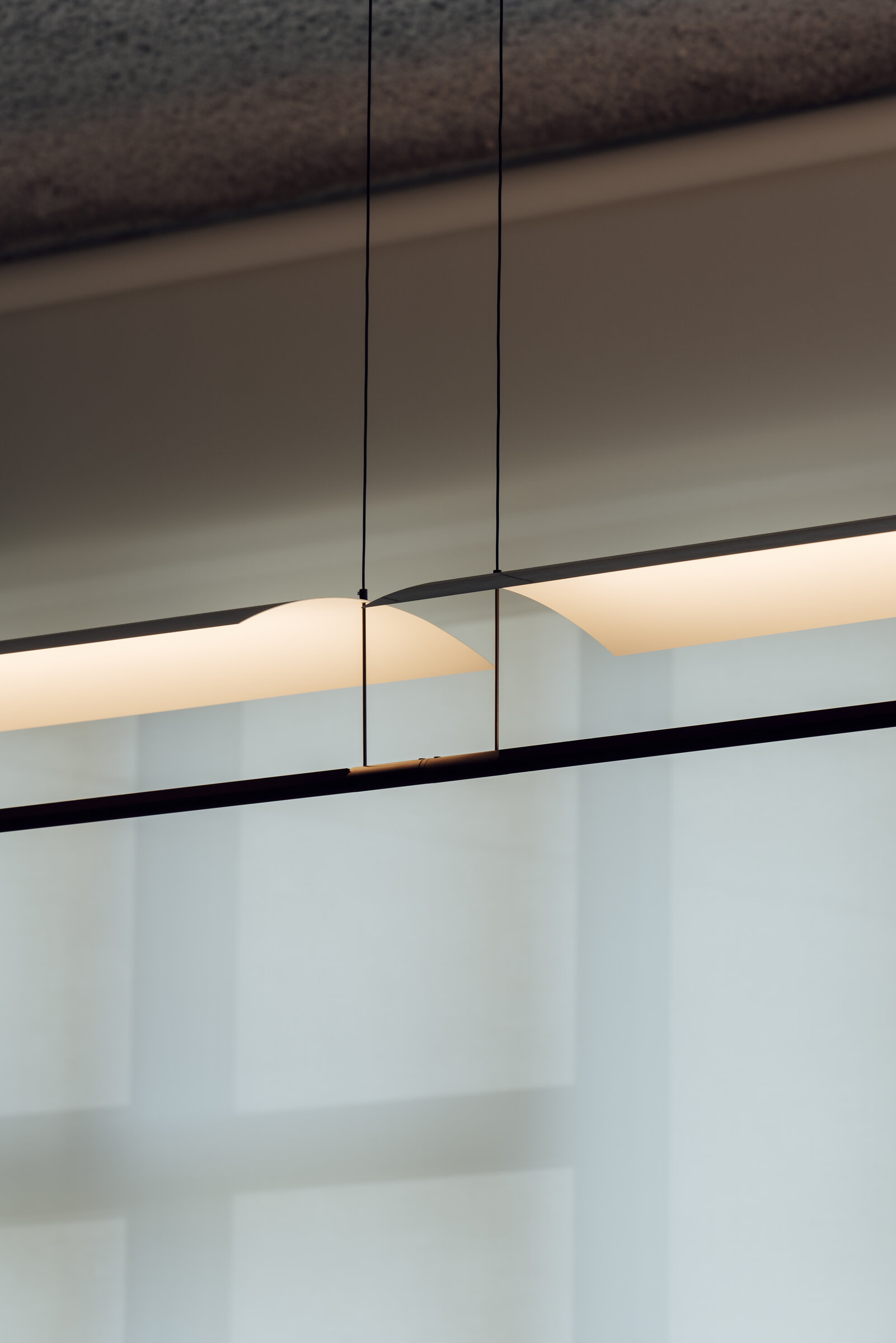

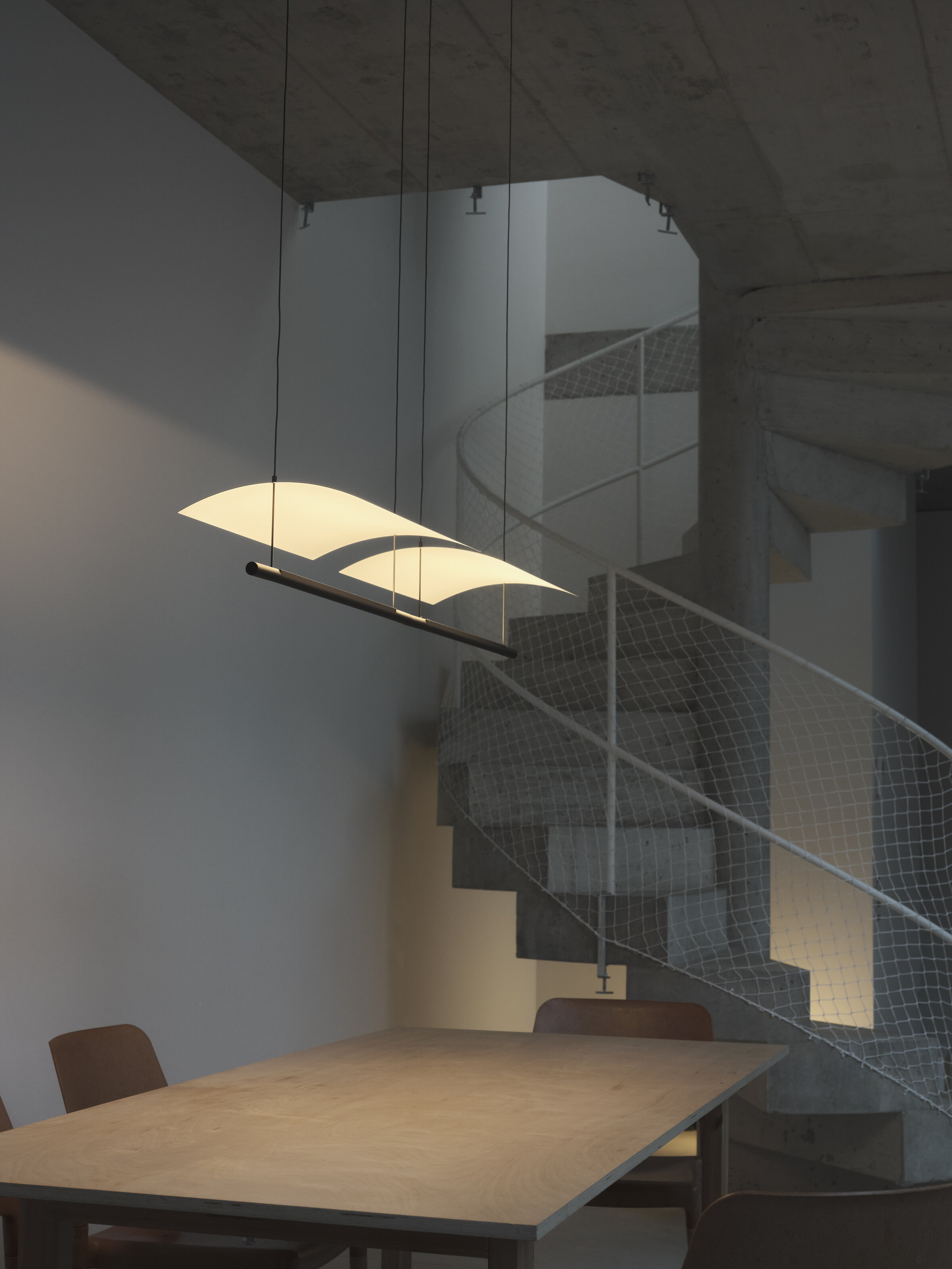

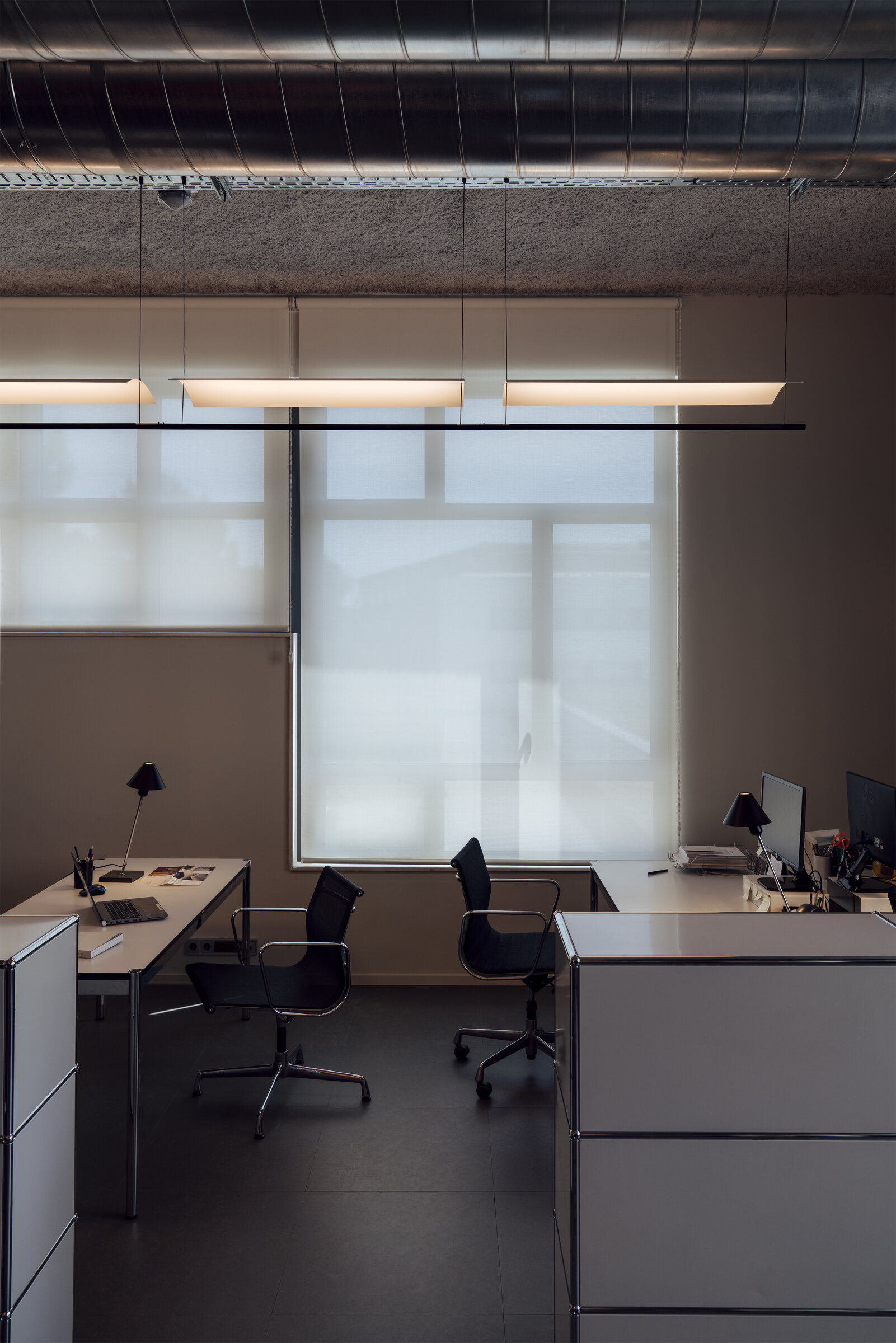

A line of light and a thin metal sheet create a soft but effective levity. A marriage of the poetic and the practical, Lámina is a system that upholds the benefits of reflected light by using obvious shapes in different formats and with different shades that conceal nothing and show everything.
Dimension plane
Overview
Black metal structure with matte finish.
Polycarbonate diffuser.
Suitable for dimming 1-10V. (Not included external dimmer switch 1-10V).
Weight: 2,8 kg / 6.2 lb
Electric cable length: 5 m / 196.9"
Light sources
Light source included (dimmable):
Built-in LED:
Output 18W / Input: 100 ~ 240 Vac.
(50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 711 lm
E.E.C. E.
Input voltage: 100 ~ 240 Vac.
(50 Hz / 60 Hz). Según destino.
Dimension plane
Overview
Black metal structure with matte finish.
Polycarbonate diffuser.
Suitable for dimming 1-10V. (Not included external dimmer switch 1-10V).
Weight: 3,7 kg / 8.2 lb
Electric cable length: 5 m / 196.9"
Light sources
Light source included (dimmable):
Built-in LED:
Output 31W / Input: 100 ~ 240 Vac.
(50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 1.394 lm
E.E.C. E.
Input voltage: 100 ~ 240 Vac.
(50 Hz / 60 Hz). Según destino.
Dimension plane
Overview
Black metal structure with matte finish.
Polycarbonate diffuser.
Suitable for dimming 1-10V. (Not included external dimmer switch 1-10V).
Weight(1 module): 4 kg / 8.8 lb
Electric cable length: 5 m / 196.9"
Light sources
Light source included (dimmable):
Built-in LED:
Output 31W / Input: 100 ~ 240 Vac.
(50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 1.422 lm
E.E.C. E.
Input voltage: 100 ~ 240 Vac.
(50 Hz / 60 Hz). Según destino.
Dimension plane
Overview
Black metal structure with matte finish.
Polycarbonate diffuser.
Suitable for dimming 1-10V. (Not included external dimmer switch 1-10V).
Weight(1 module): 6 kg / 13.2 lb
Electric cable length: 5 m / 196.9"
Light sources
Light source included (dimmable):
Built-in LED:
Output 54W / Input: 100 ~ 240 Vac.
(50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 2.788 lm
E.E.C. E.
Input voltage: 100 ~ 240 Vac.
(50 Hz / 60 Hz). Según destino.
Available modifications
Remote driver.
