Cirio Circular

Antoni Arola

Biographies

Antoni Arola

Antoni Arola, winner of the 2003 National Design Award, is a distinguished figure of Spain’s current design scene. His versatile work ranges from creating a perfume flacon or a lamp to interior designs of important present-day venues. Arola s evocative approach towards life and space give him an enduring place at Santa & Cole....

Read more
| 2010

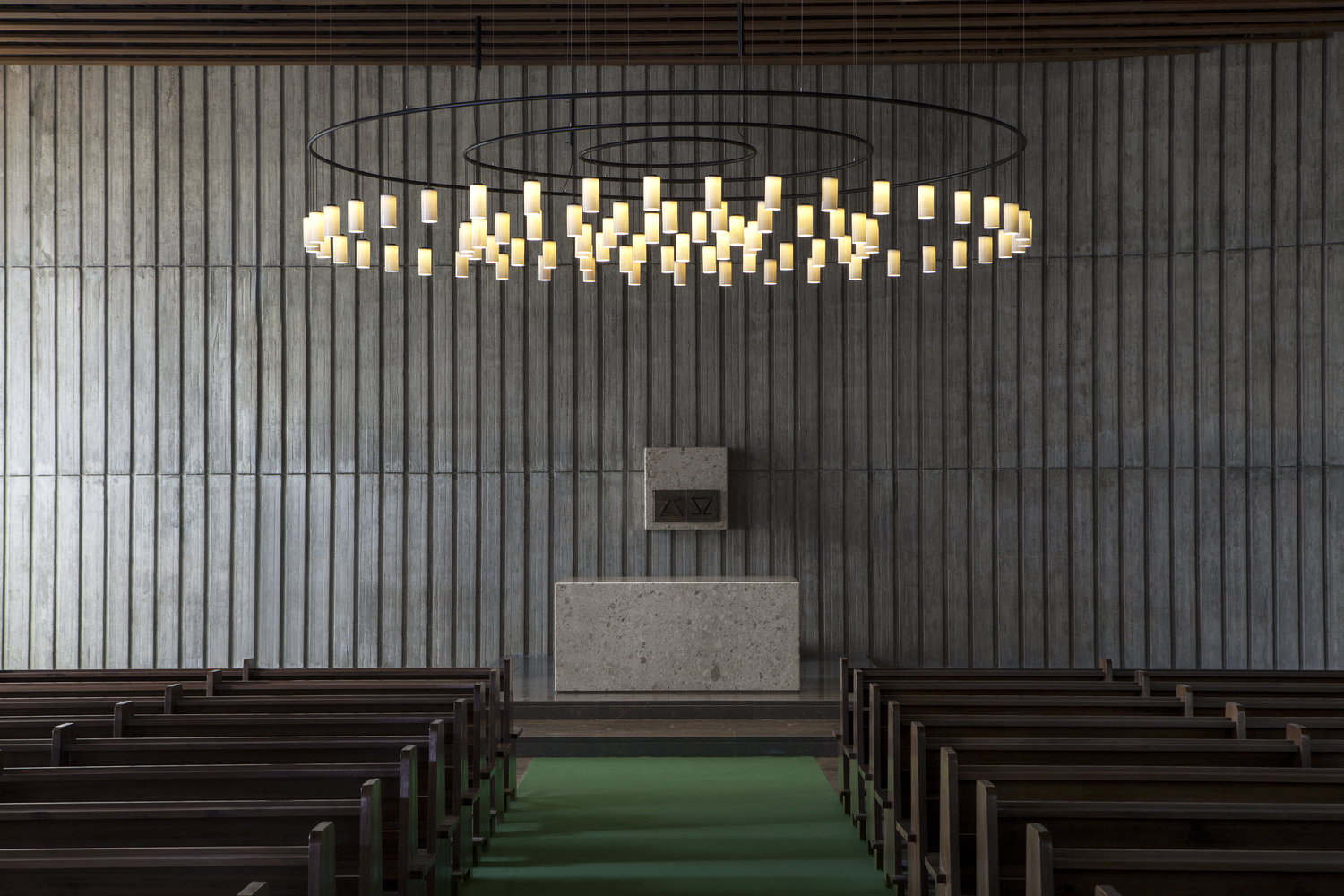

The Cirio system was devised with the aim of using LED technology for gentle lighting in public areas, and was inspired by the majestic lamps in the world’s great mosques. Its versatile structure allows for differing diameters to produce a range of formats. The circular structures can be combined to create rich compositions.

Compare all models

Safe payment Shipping insurance included Installment payment option Care instructions

Dimension plane


Overview

Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
3 lampshade options: white porcelain, white opal glass and polished brass.Black aluminium circular structure ø 520 cm / 204.7” for 42 lampshades.
Rectangular black metallic canopy with built-in equipment. Suitable for dimming 1-10V/DALI. (Not included external dimmer switch 1-10V/DALI).Suitable for Junction Box (UL market).
Electric cable length: 5 m / 196.8"

Light sources

Light sources included (dimmable):
42 x Built-in LED. Output 7,7W. 700 mA / Input: 120 ~ 277 Vac. (50 Hz / 60 Hz). According to destination.Tª Colour: 2.700 KTypical CRI: 90Lifetime: 40.000 hLuminous flux: Porcelain 9.324 lm / Glass 27.510 lm / Brass 9.954 lm

Dimension plane


Overview

Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
3 lampshade options: white porcelain, white opal glass and polished brass.Black aluminium circular structure ø 300 cm / 118.1" for 28 lampshades.
Rectangular black metallic canopy with built-in equipment. Suitable for dimming 1-10V/DALI. (Not included external dimmer switch 1-10V/DALI).Suitable for Junction Box (UL market).
Electric cable length: 5 m / 196.8"

Light sources

Light sources included (dimmable):
28 x Built-in LED. Output 7,7W. 700 mA / Input: 120 ~ 277 Vac. (50 Hz / 60 Hz). According to destination.Tª Colour: 2.700 KTypical CRI: 90Lifetime: 40.000 hLuminous flux: Porcelain 6.216 lm / Glass 18.340 lm / Brass 6.636 lm

Dimension plane


Overview

Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
3 lampshade options: white porcelain, white opal glass and polished brass.Black aluminium circular structure ø 130 cm / 51.1” for 12 lampshades.
Suitable for dimming 1-10V / DALI. (Not included external dimmer switch 1-10V / DALI).Suitable for Junction Box (UL market).
Electric cable length: 5 m / 196.8"

Light sources

Light sources included (dimmable):
12 x Built-in LED. Output 7,7W. 700 mA / Input: 120 ~ 277 Vac. (50 Hz / 60 Hz). According to destination.Tª Colour: 2.700 KTypical CRI: 90Lifetime: 40.000 hLuminous flux: Porcelain 2.664 lm / Glass 7.860 lm / Brass 2.844 lm

Dimension plane


Overview

Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
3 lampshade options: white porcelain, white opal glass and polished brass.Combination of the linear and circular M (ø 300 cm / 118.1”) models.
Black aluminium structure.
Rectangular black metallic canopy with built-in equipment. Suitable for dimming 1-10V. (Not included external dimmer switch 1-10V).Suitable for Junction Box (UL market).
Electric cable length: 5 m / 196.8"

Light sources

Light sources included (dimmable):
28 + 5 + 5 x Built-in LED. Output 7,7W. 350 mA / Input: 120 ~ 277 Vac. (50 Hz / 60 Hz). According to destination.Tª Colour: 2.700 KTypical CRI: 83Lifetime: 40.000 hLuminous flux: Porcelain 8.436 lm / Glass 24.890 lm / Brass 9.006 lm

Available modifications

Other ring dimensions.

We offer the possibility of adapting our products to the requirements of your contract project, modifying them to your needs. All customisations shall be studied upon request respecting the minimum quantity required. Contact us for customisations inqueries.
