Línea Estadio
2014
Línea Estadio
Biographies
Miguel Milá
Miguel Milá, an interior designer, inventor and bricoleur, and a pioneer in his field in Spain, began working in the 1950s. With objects, resources and raw materials hard to come by at that time, Milá started designing his own furniture and lamps and soon set up his own company, Tramo (from the Spanish Tra-bajos Mo-lestos, ‘Annoying Jobs’). Many of his pieces have become true contemporary classics. In 2016, the Spanish Ministry of Education and Culture in Spain awarded him the Gold Medal for Merit in Fine Arts. He has won numerous ADI awards (Barcelona), the first Spanish National Design Award (tied with André Ricard), and the ADI Compasso d’Oro for Lifetime Achievements.

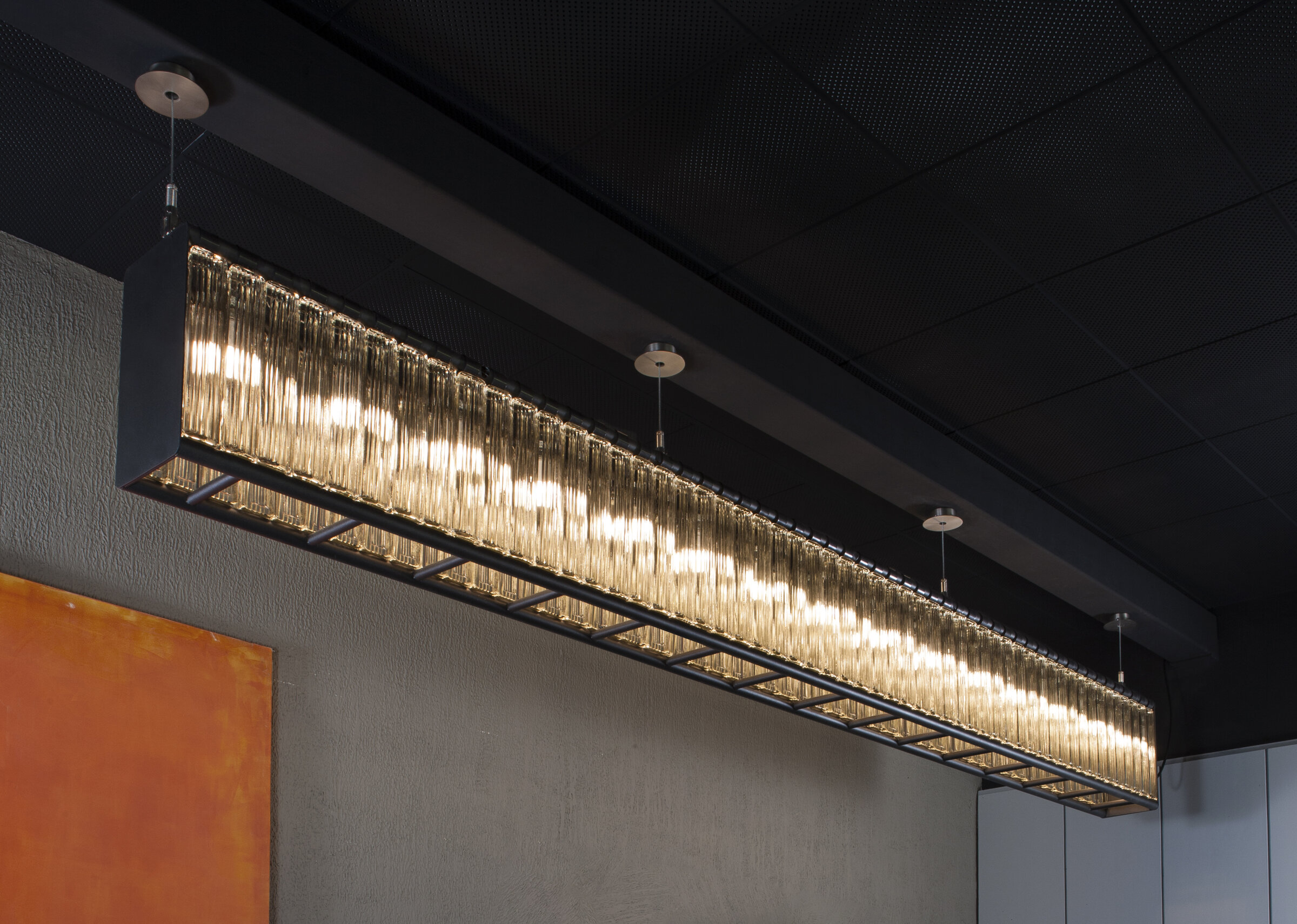

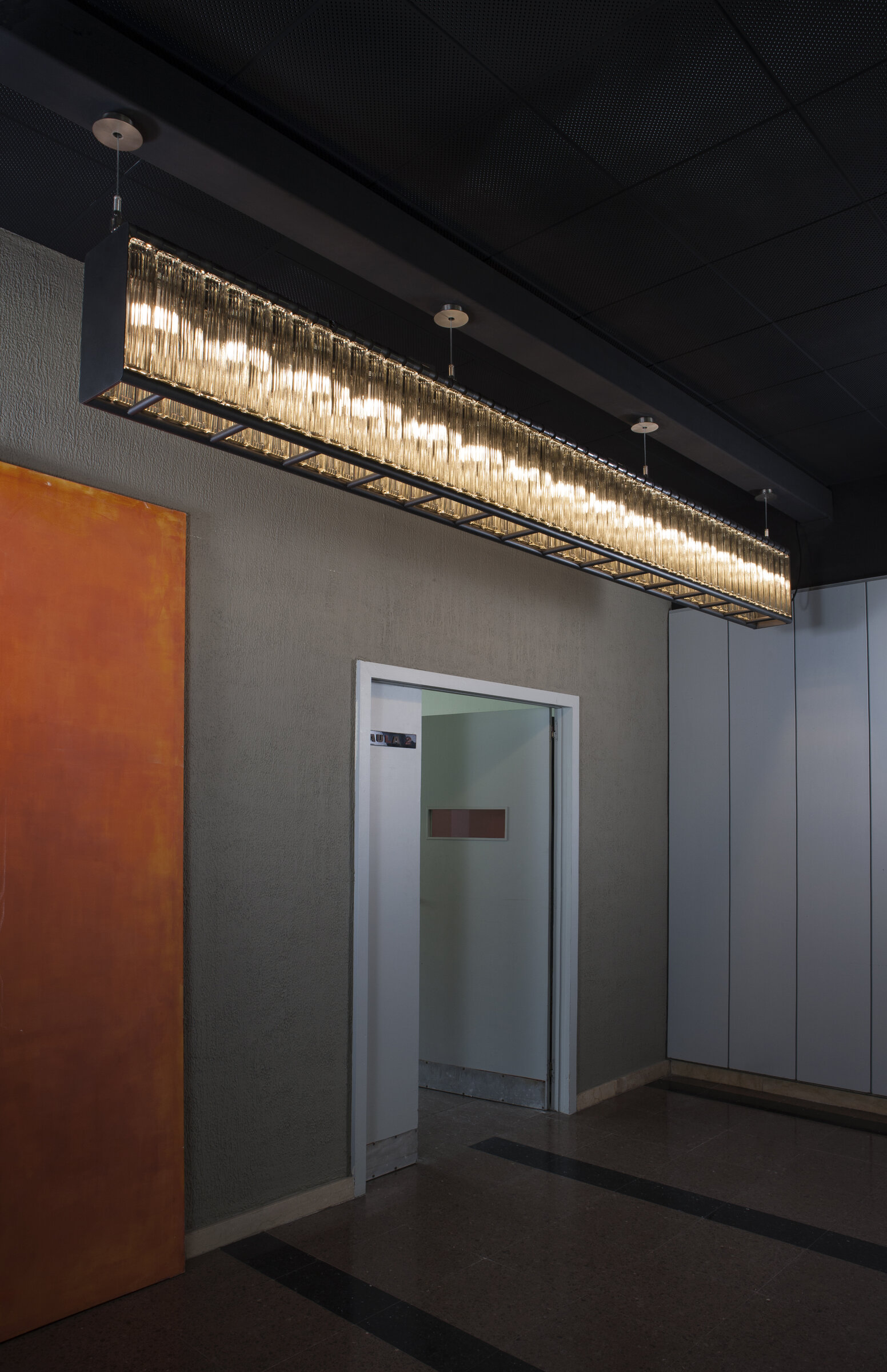

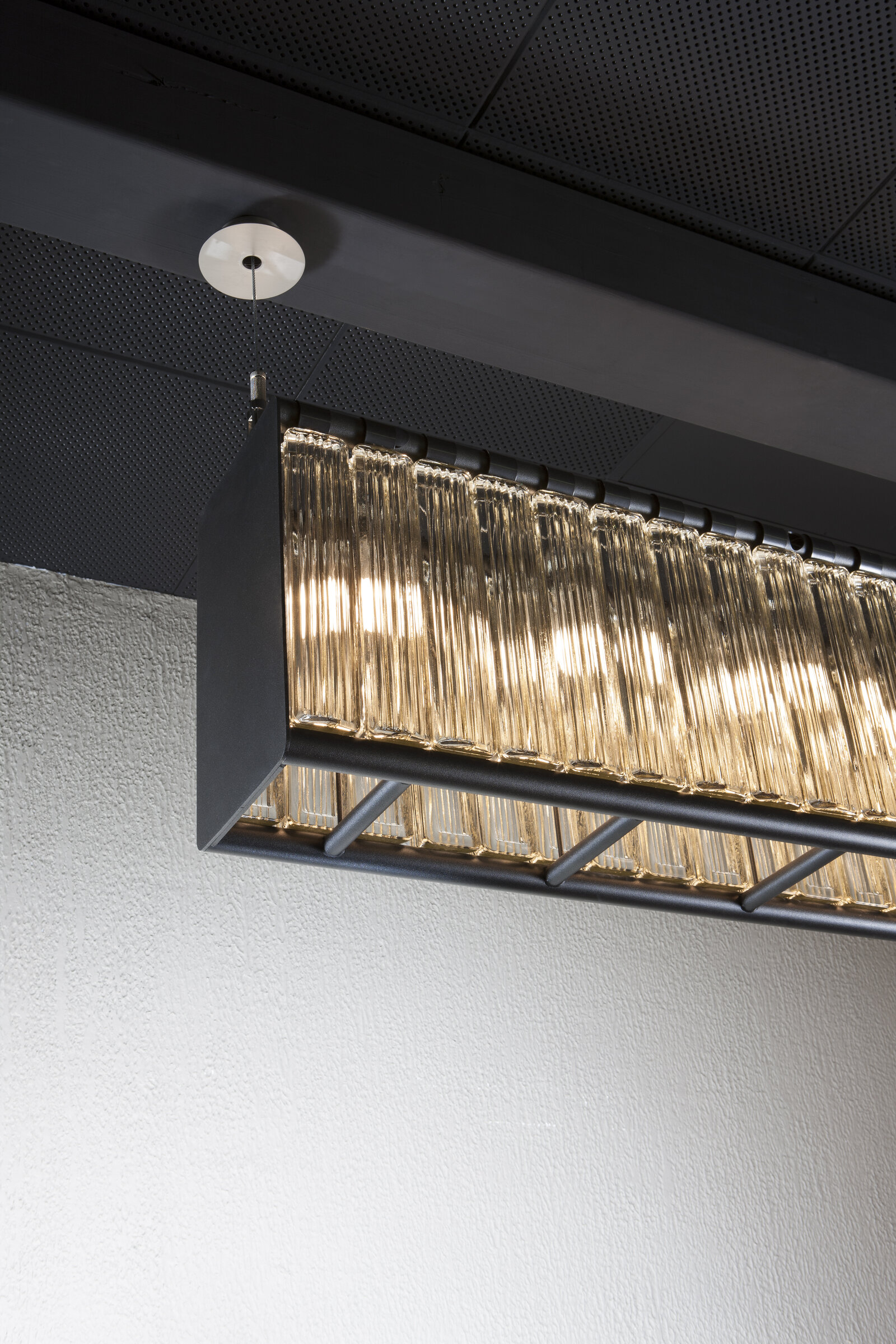

The linear version of the Estadio lamp conserves its sturdy metallic structure and the glass blocks that disperse the light for its unmistakable presence. Originally conceived for the Barcelona 1992 Olympic Stadium, the Estadio family also includes the large circular suspension lamps and the wall sconce.

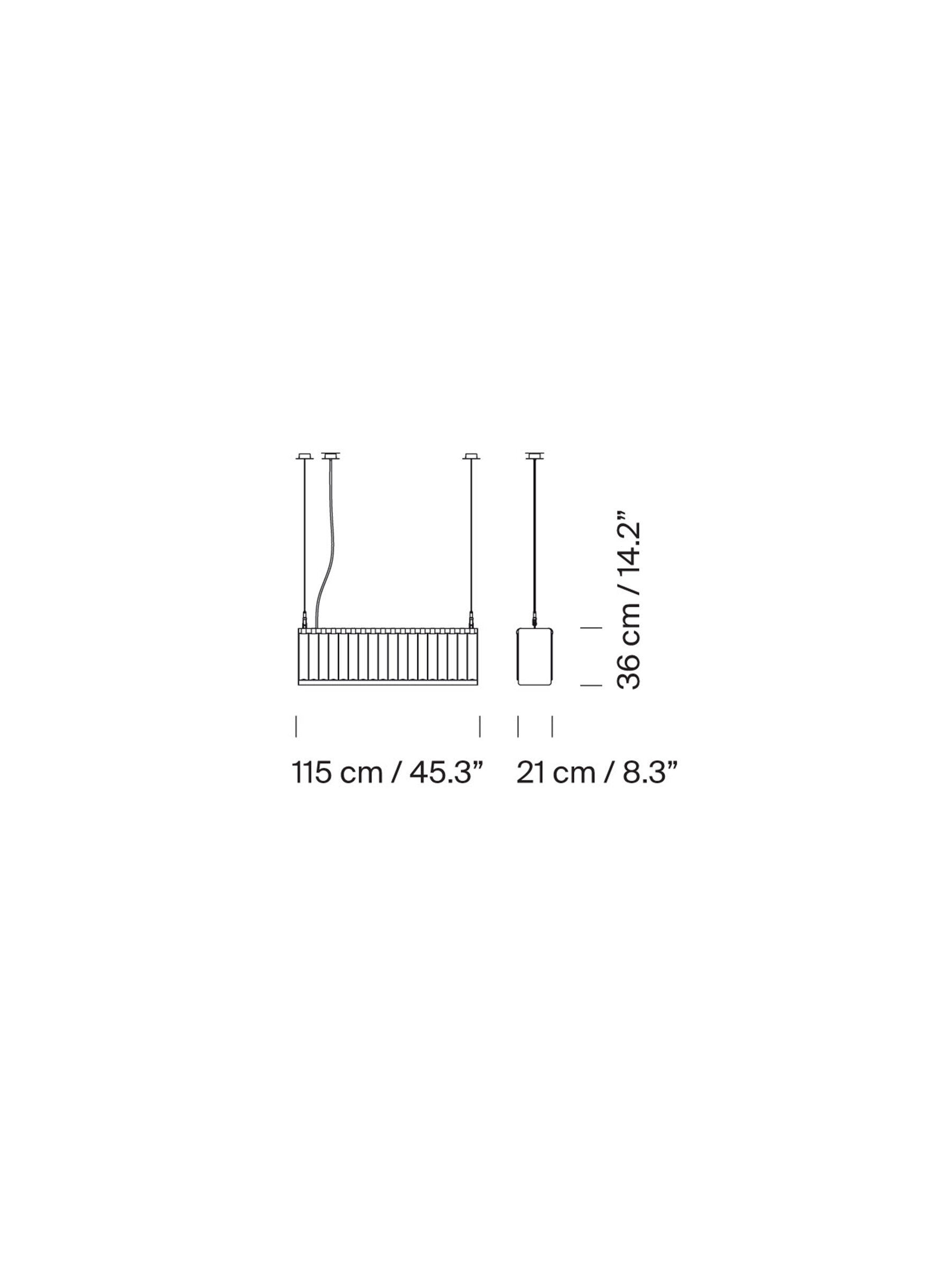

Dimension plane
Overview
Glass block lampshade.Junction Box adaptor included Ø 11,7 cm / 4.6". This fixture must be mounted or supported independently of a Junction Box (UL market).
Weight: 52 kg / 114.6 lb
Electric cable length: 4 m / 157.5"
Light sources
Recommended light source (not included):
5 x LED bulb: 12W.
E.E.C. D.
Other light sources: Max. 75 W
Input voltage: 100, 120, 230 Vac.
(50 Hz / 60 Hz). Según destino.
Lamp holder: E26 (Max. height 155 mm / 6.1″)

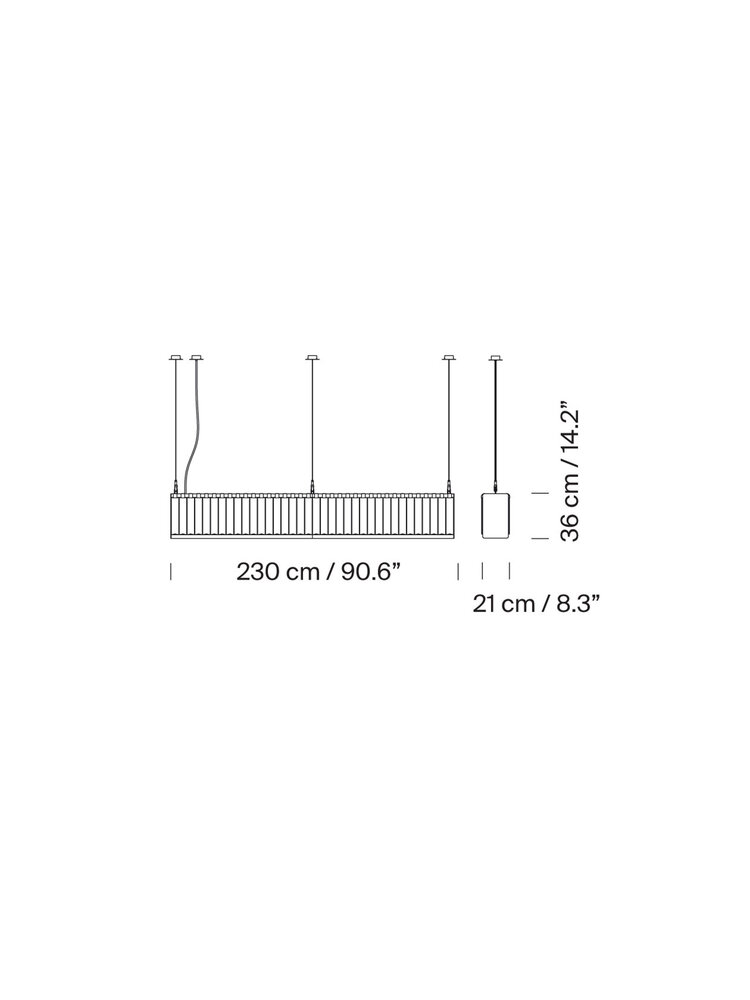

Dimension plane
Overview
Glass block lampshade.Outlet Box adaptor included Ø 11,7 cm / 4.6". This fixture must be mounted or supported independently of an Outlet Box (UL market).
Weight: 104 kg / 229.3 lb
Electric cable length: 4 m / 157.5"
Light sources
Recommended light source (not included):
10 x LED bulb: 12W.
Other light sources: Max. 75 W
Input voltage: 100, 120, 230 Vac.
(50 Hz / 60 Hz). Según destino.
Lamp holder: E26 (Max. height 155 mm / 6.1″)

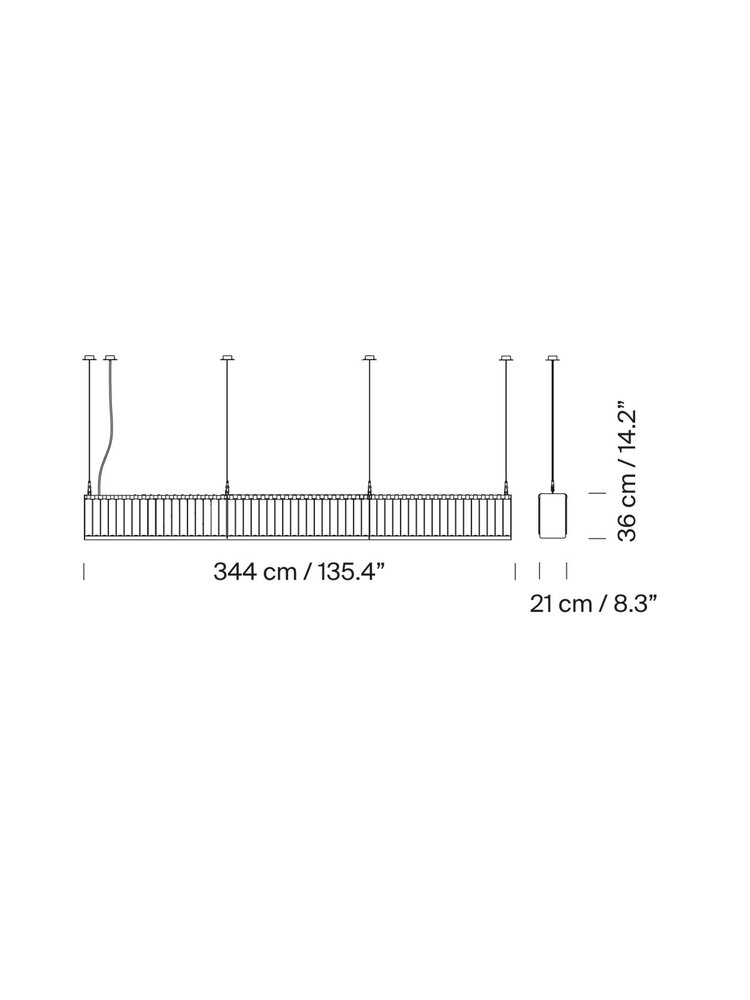

Dimension plane
Overview
Glass block lampshade.Outlet Box adaptor included Ø 11,7 cm / 4.6". This fixture must be mounted or supported independently of an Outlet Box (UL market).
Weight: 156 kg / 343.9 lb
Electric cable length: 4 m / 157.5"
Light sources
Recommended light source (not included):
15 x LED bulb: 12W.
E.E.C. D.
Other light sources: Max. 75 W
Input voltage: 100, 120, 230 Vac.
(50 Hz / 60 Hz). Según destino.
Lamp holder: E26 (Max. height 155 mm / 6.1″)

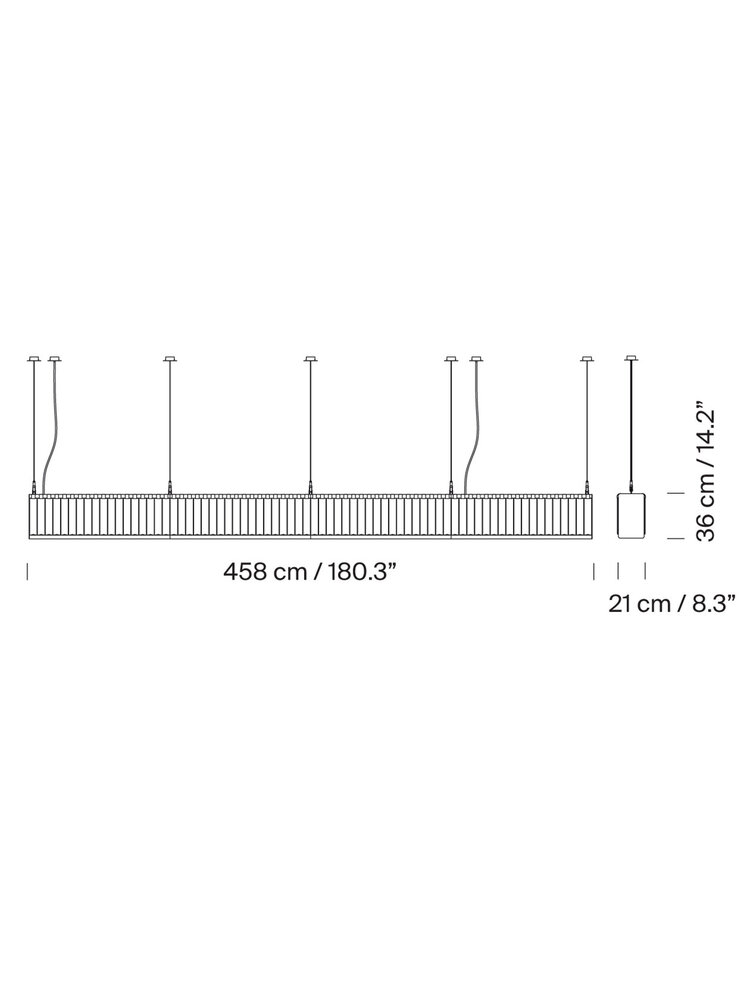

Dimension plane
Overview
Glass block lampshade.Outlet Box adaptor included Ø 11,7 cm / 4.6". This fixture must be mounted or supported independently of an Outlet Box (UL market).
Weight: 208 kg / 458.6 lb
Electric cable length: 4 m / 157.5"
Light sources
Recommended light source (not included):
20 x LED bulb: 12W.
E.E.C. D.
Other light sources: Max. 75 W
Input voltage: 100, 120, 230 Vac.
(50 Hz / 60 Hz). Según destino.
Lamp holder: E26 (Max. height 155 mm / 6.1″)
Available modifications
Other ring dimensions.
