GT1000 / GT1500

Equipo Santa & Cole
2011

GT1000 / GT1500

Equipo Santa & Cole |

Biographies

Equipo Santa & Cole

Comprising the people who work in Santa & Cole s technical department, led by the editors, the Santa & Cole Team s signature is featured in all our own designs. Some examples are the Trípode G5 lamp (1997), the HeadLed system (2013), the Arne streetlamp (2013) and its indoors version the Arne Domus (2015), the Sisisí system (1994) and the Básica lamp (1984), to name a few.

Read more
2011
Pendant lamps

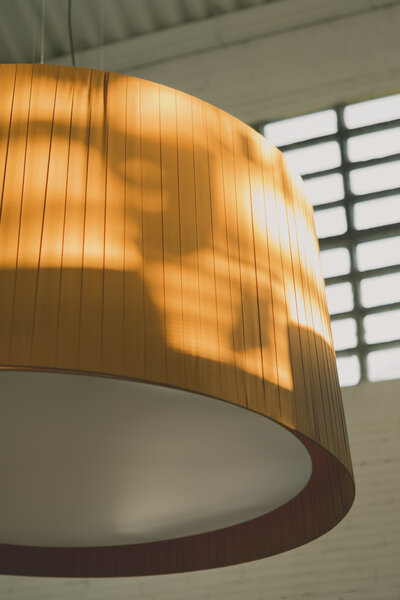

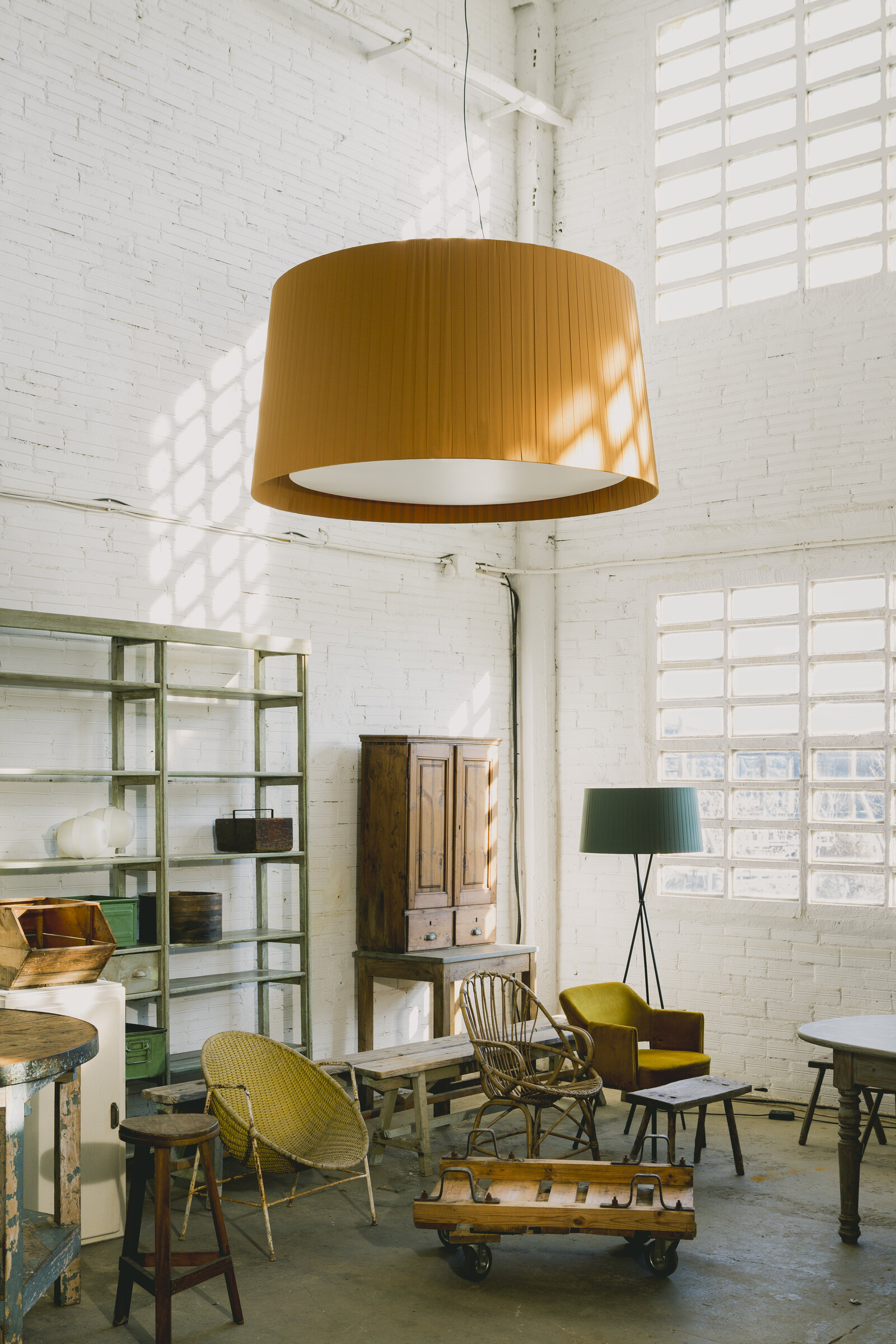

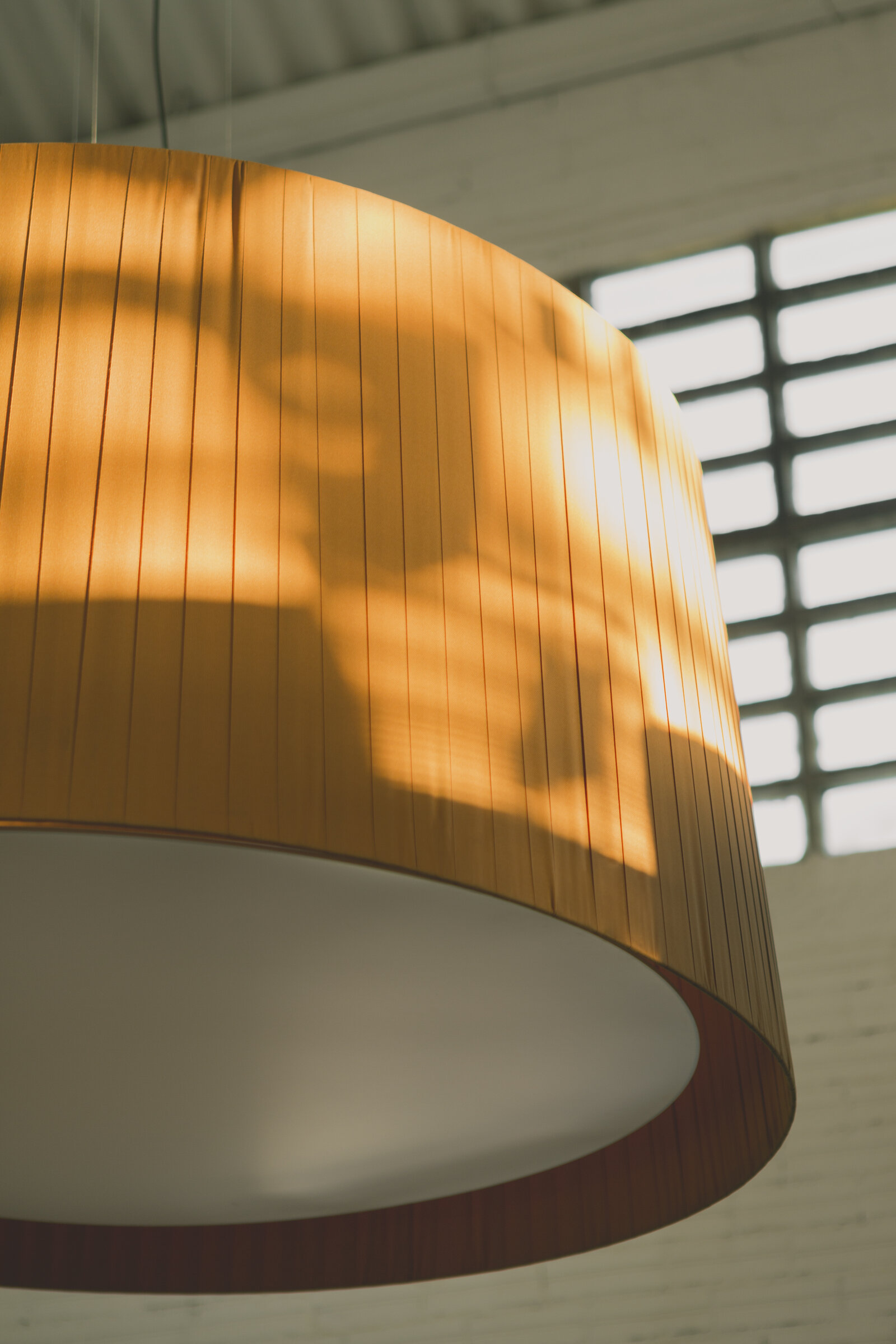

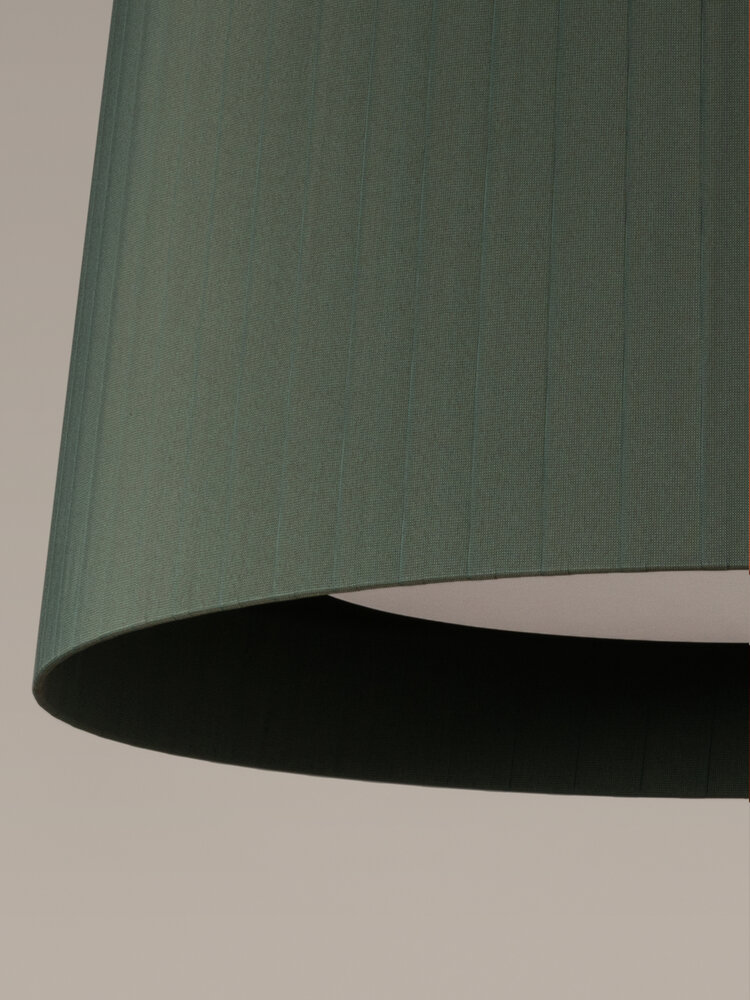

Two lamps with voluminous, beribboned shades, designed for large-scale projects. Both feature a large, translucent disc that conceals a powerful LED light source. Santa & Cole advocates the use of ribboned shades to dress up every kind of light source, exploring different materials and playing with colours and hues.

Delivery within 2 to 4 weeks


Dimension plane


Overview

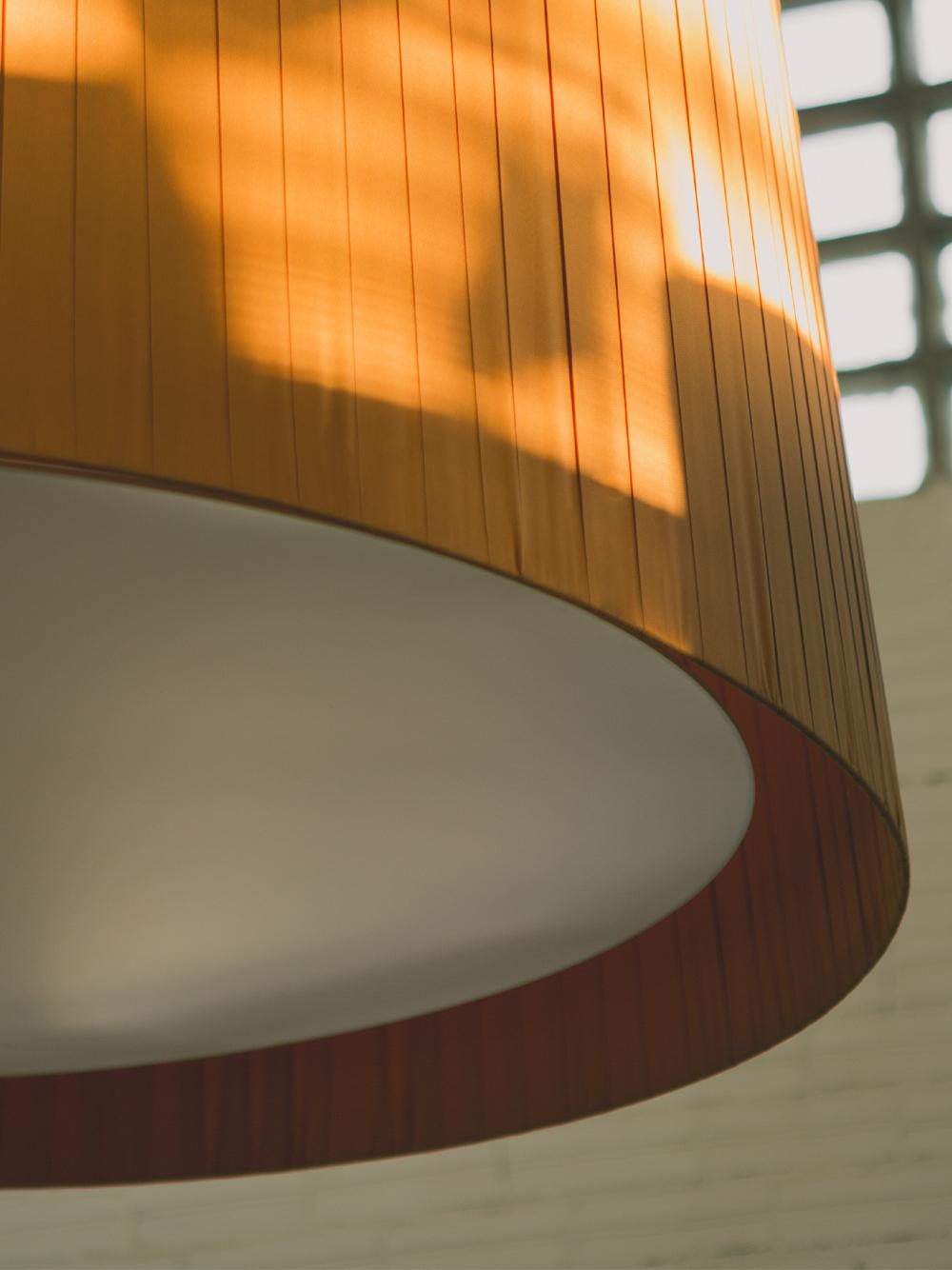

Capsule with LED module, translucent white diffuser and heat sink with matte black finish.

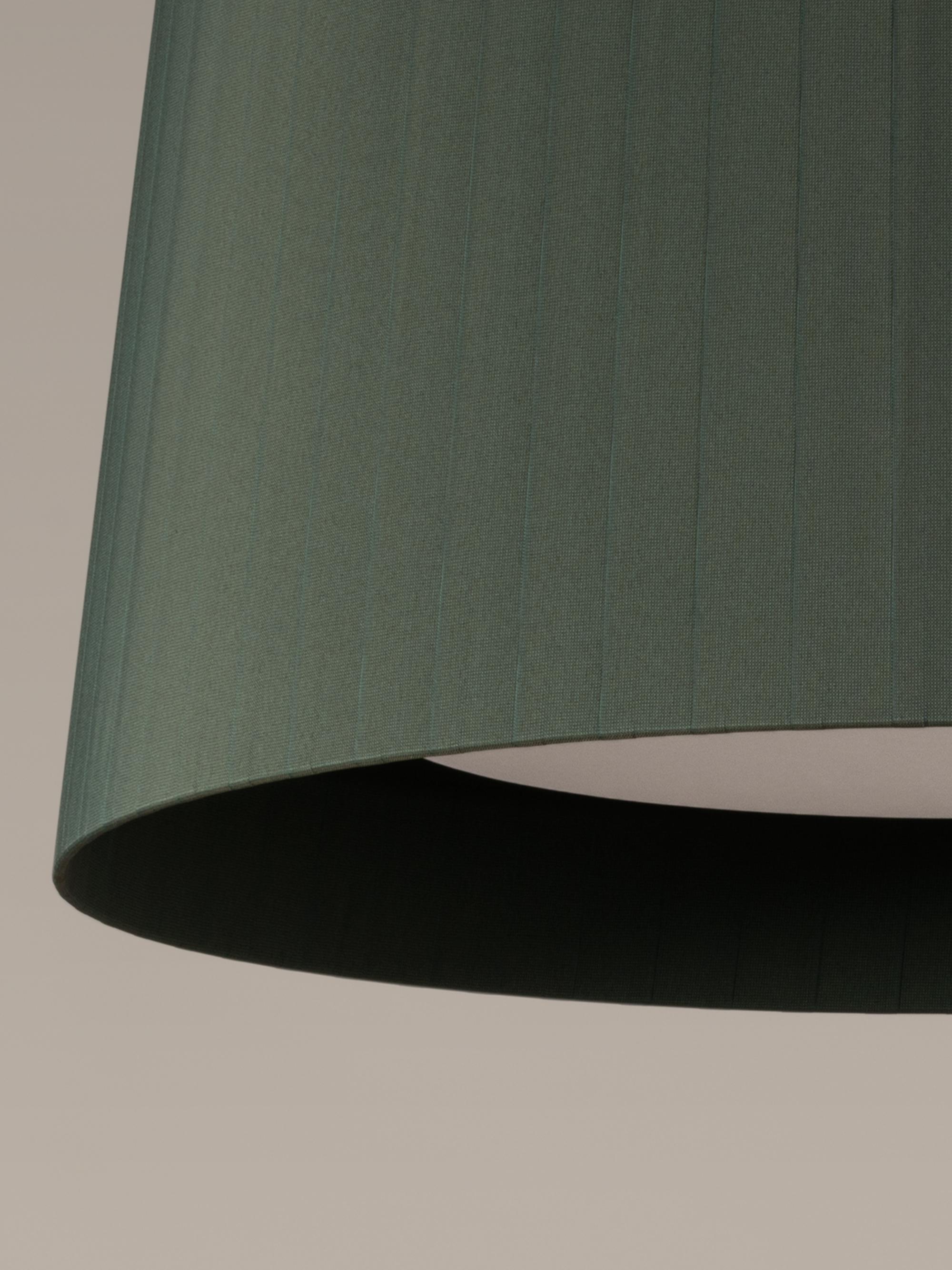

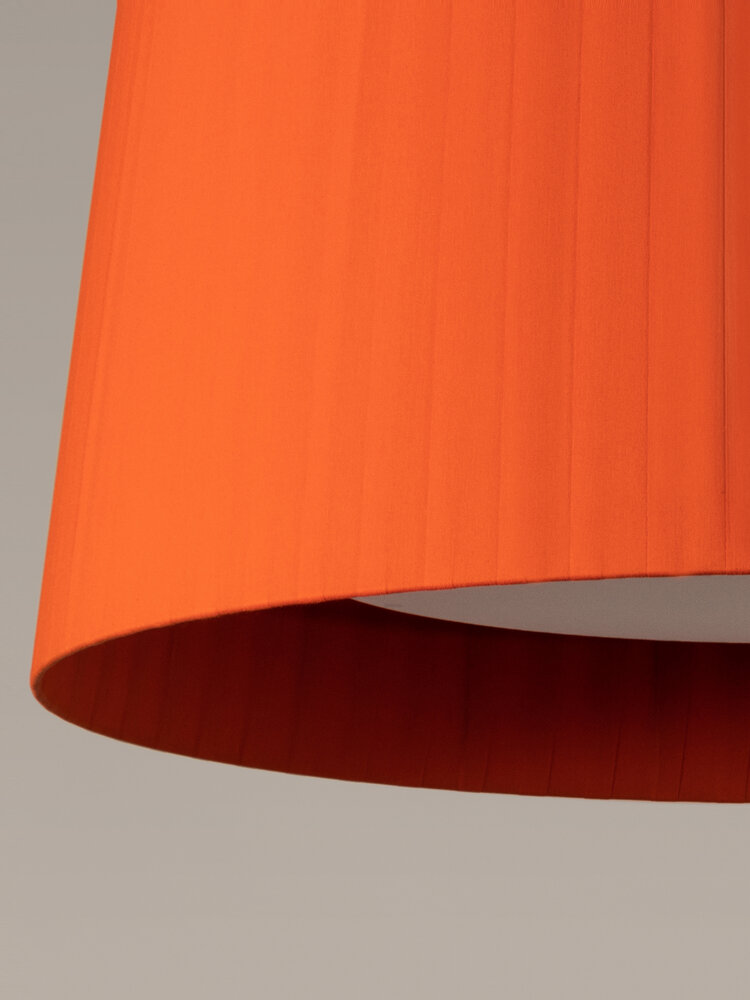

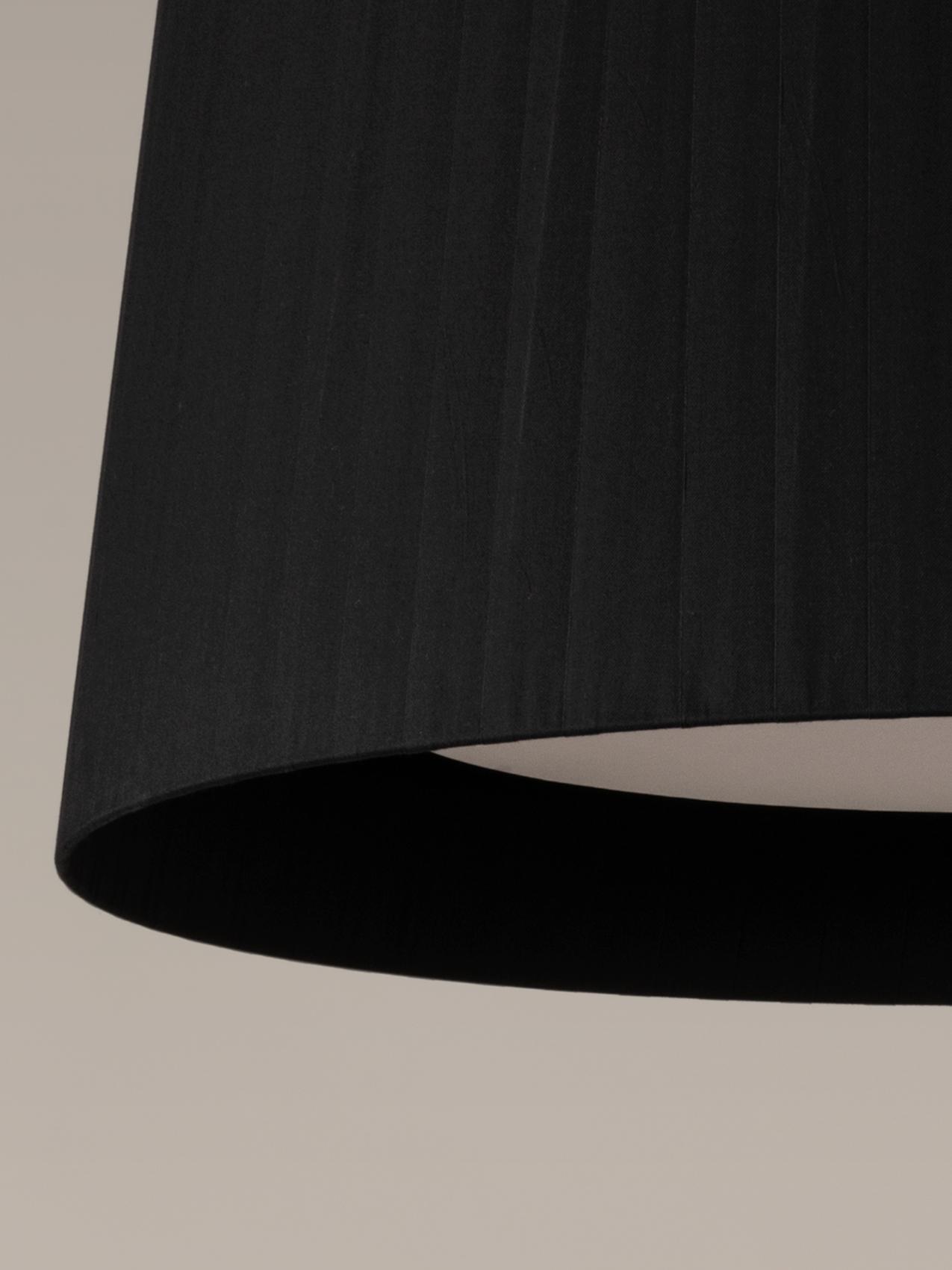

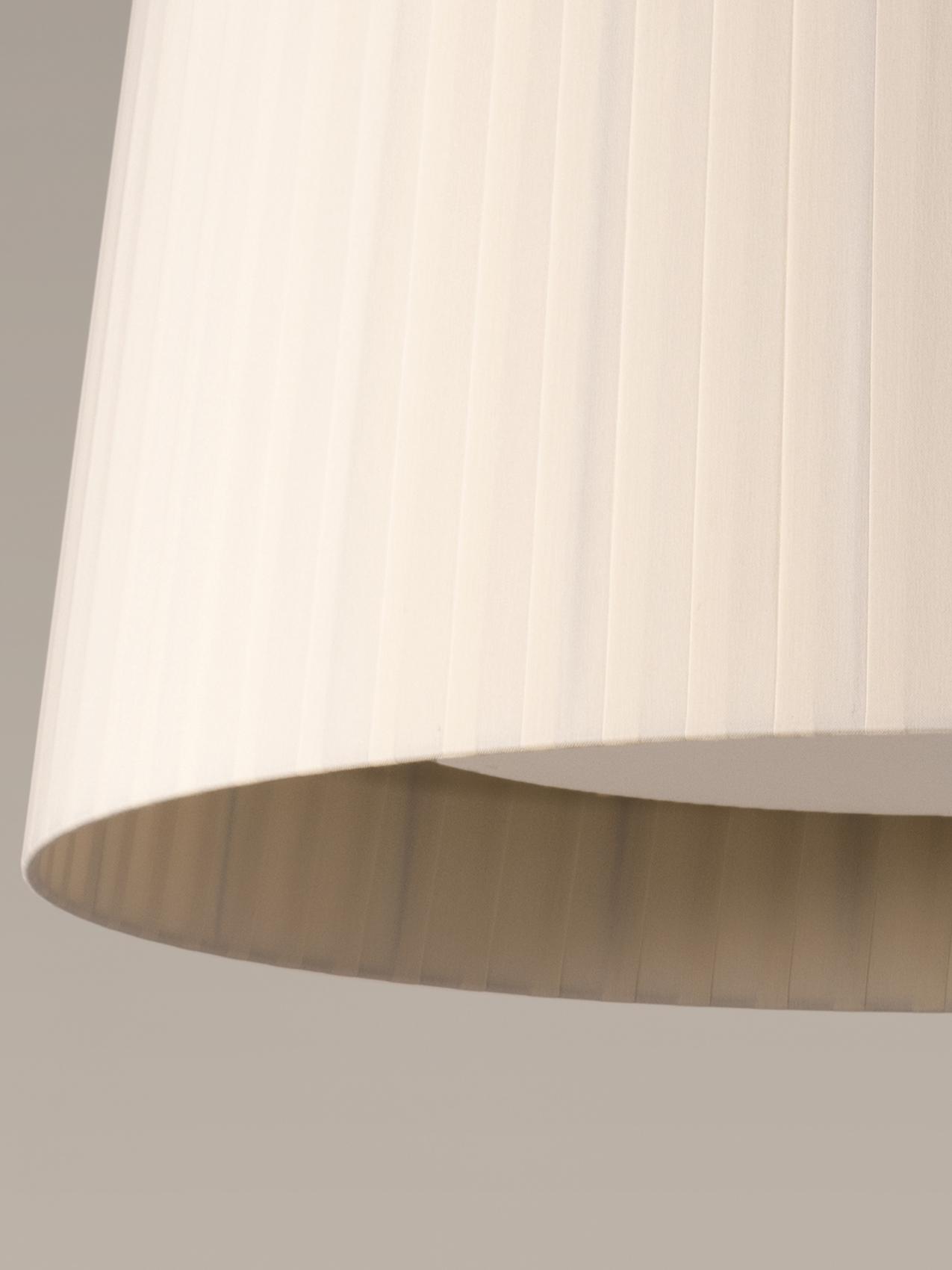

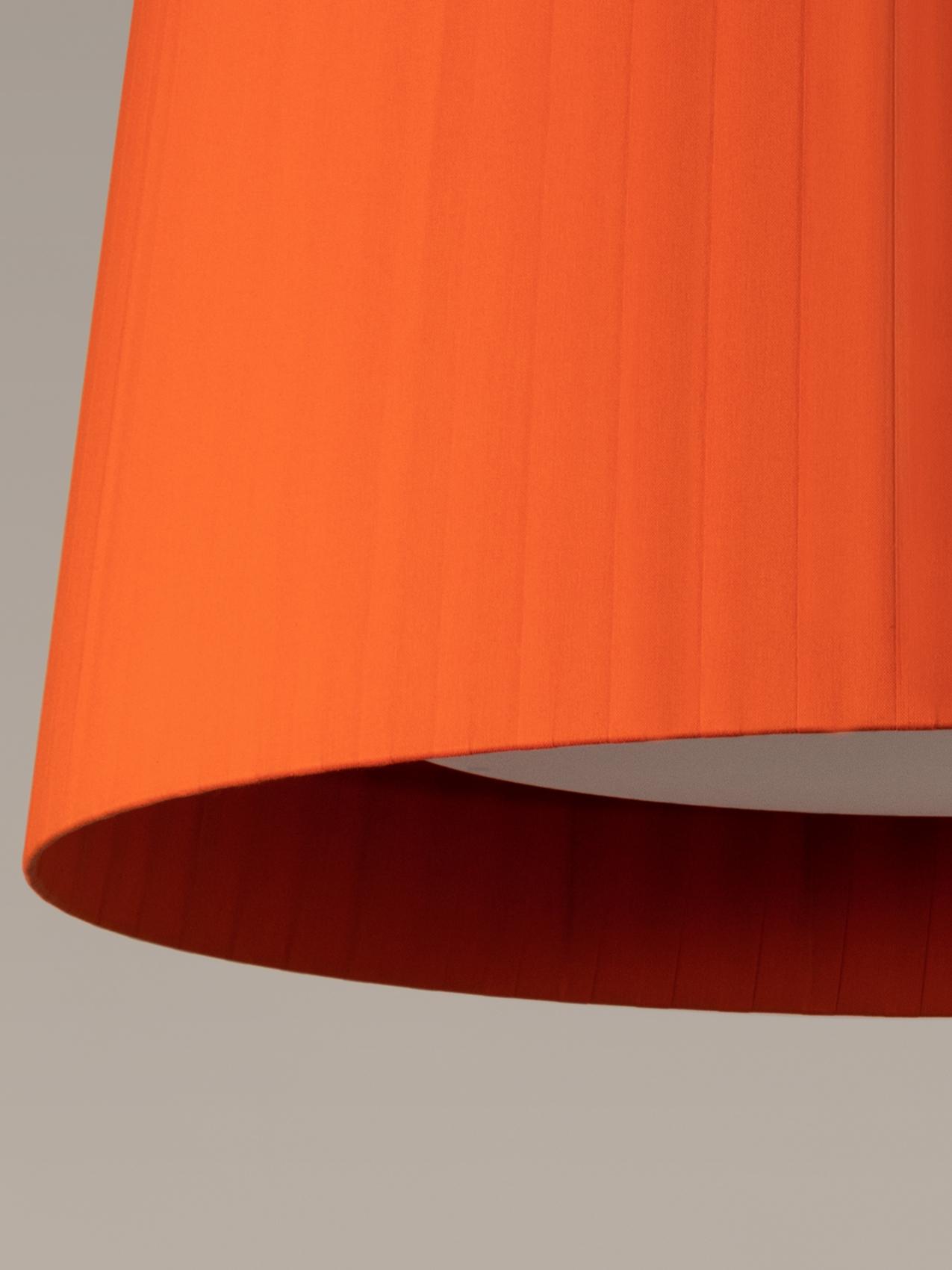

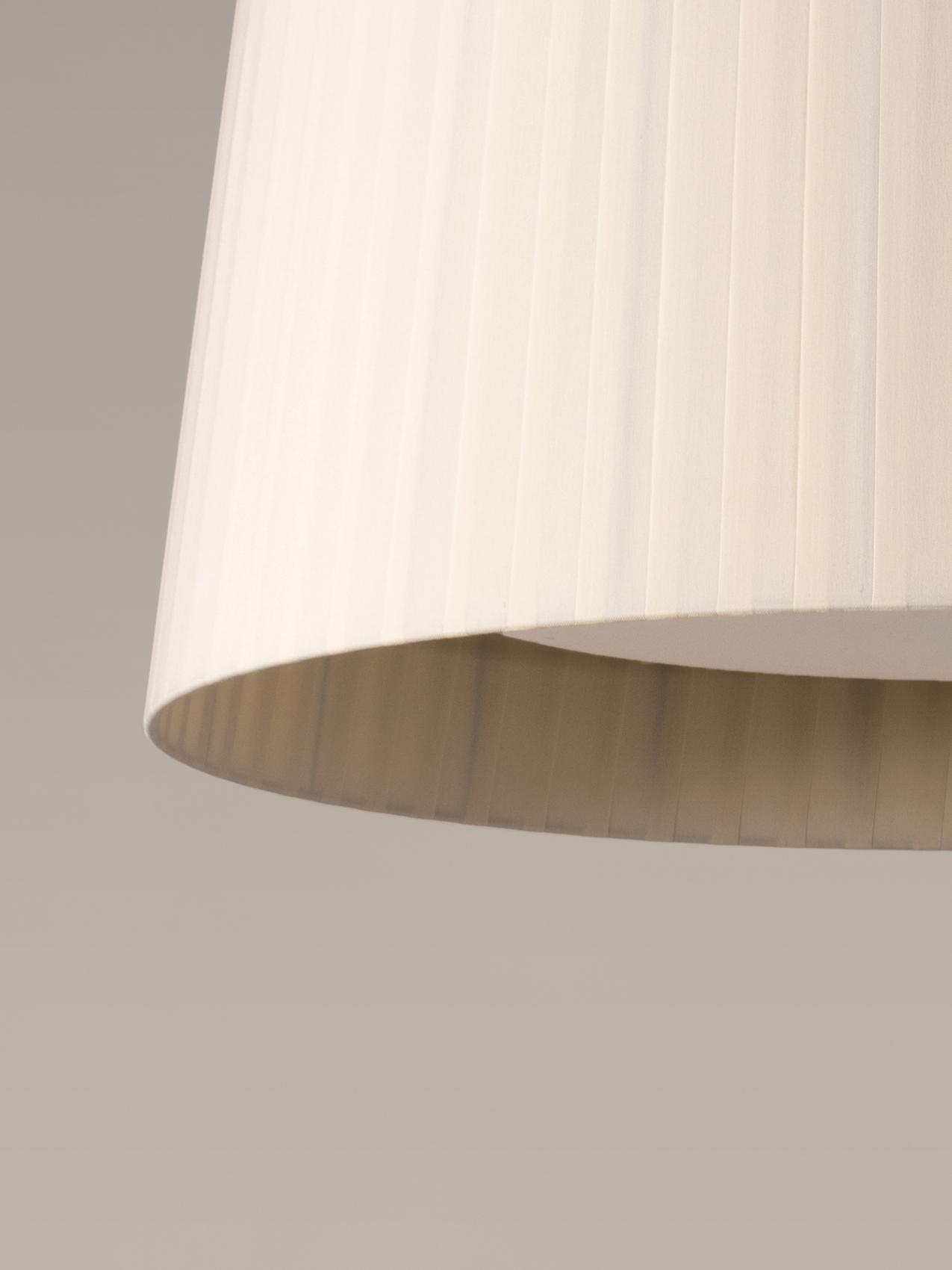

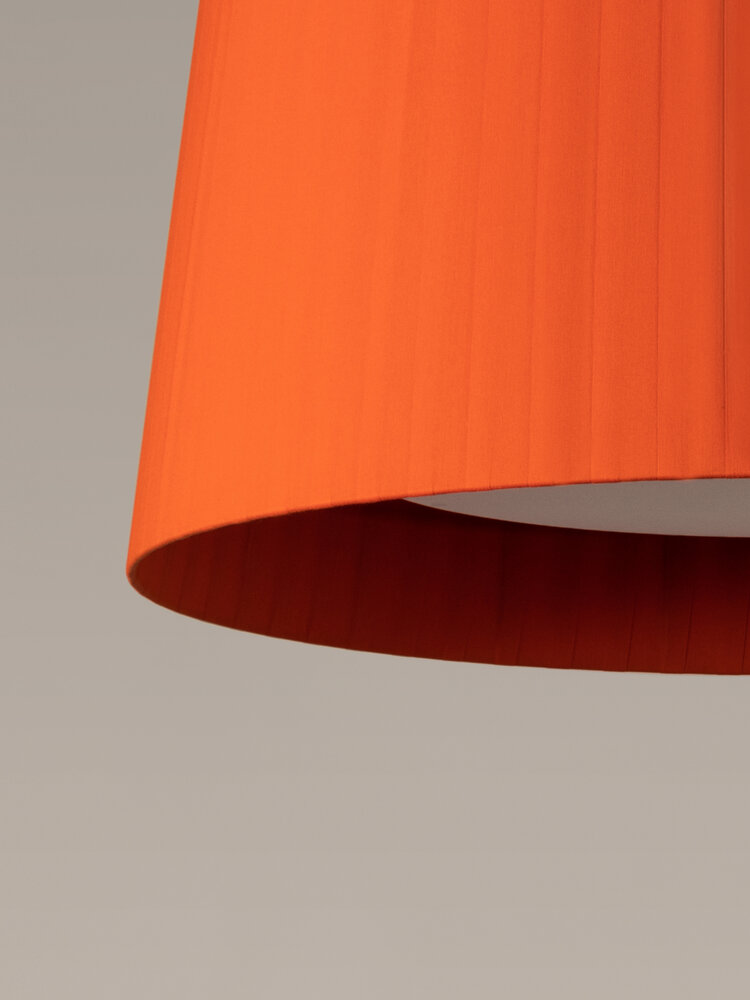

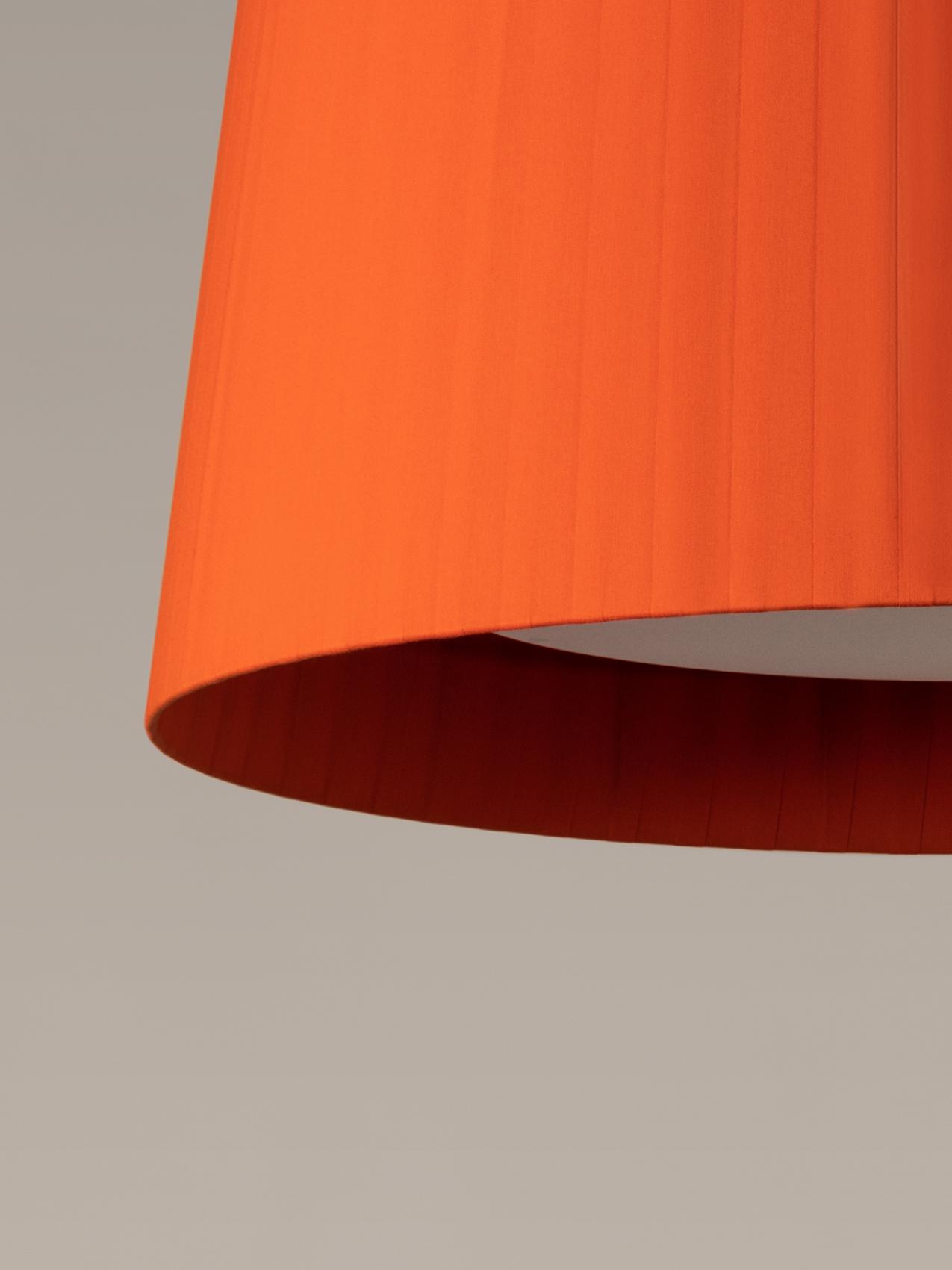

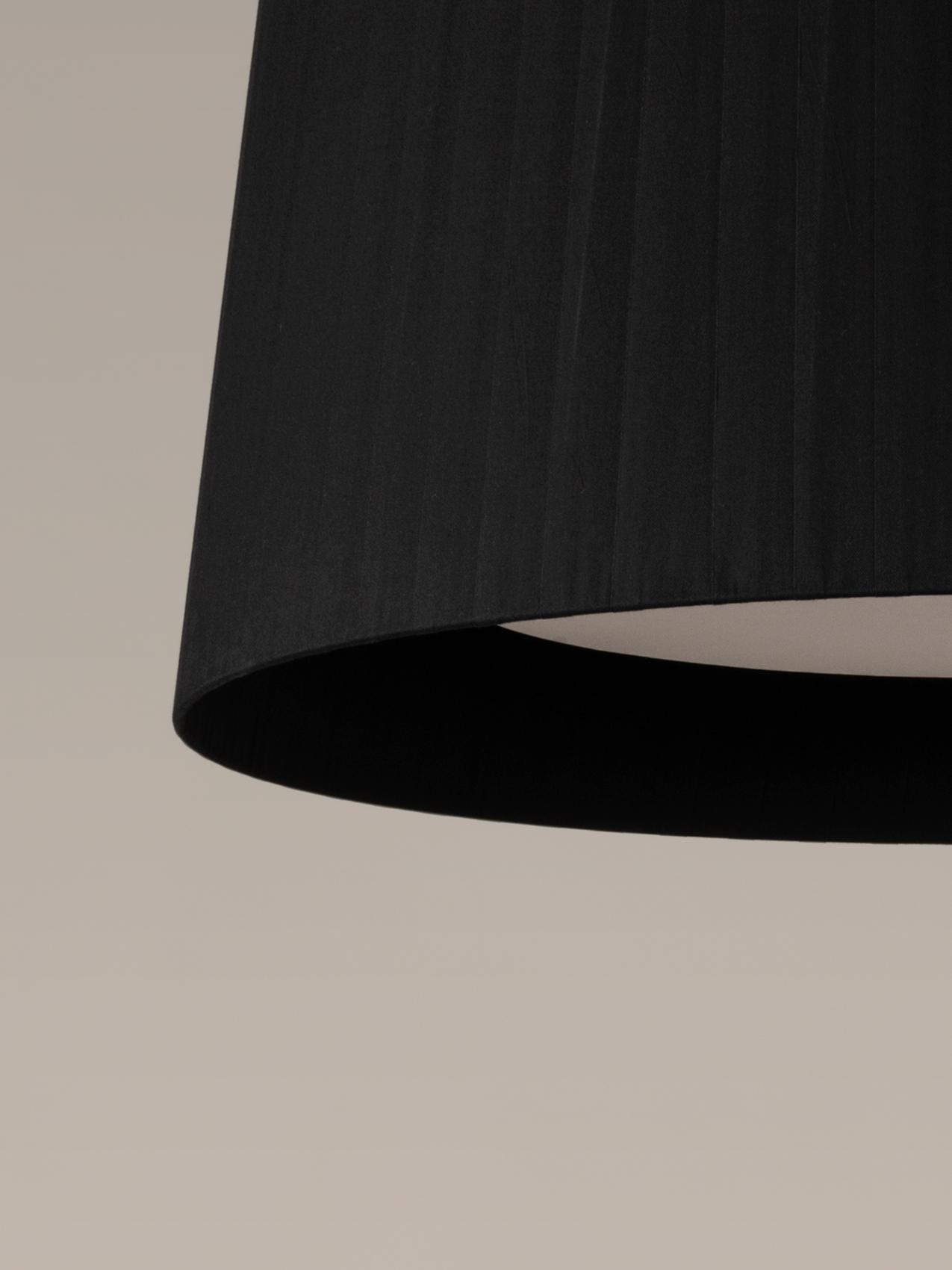

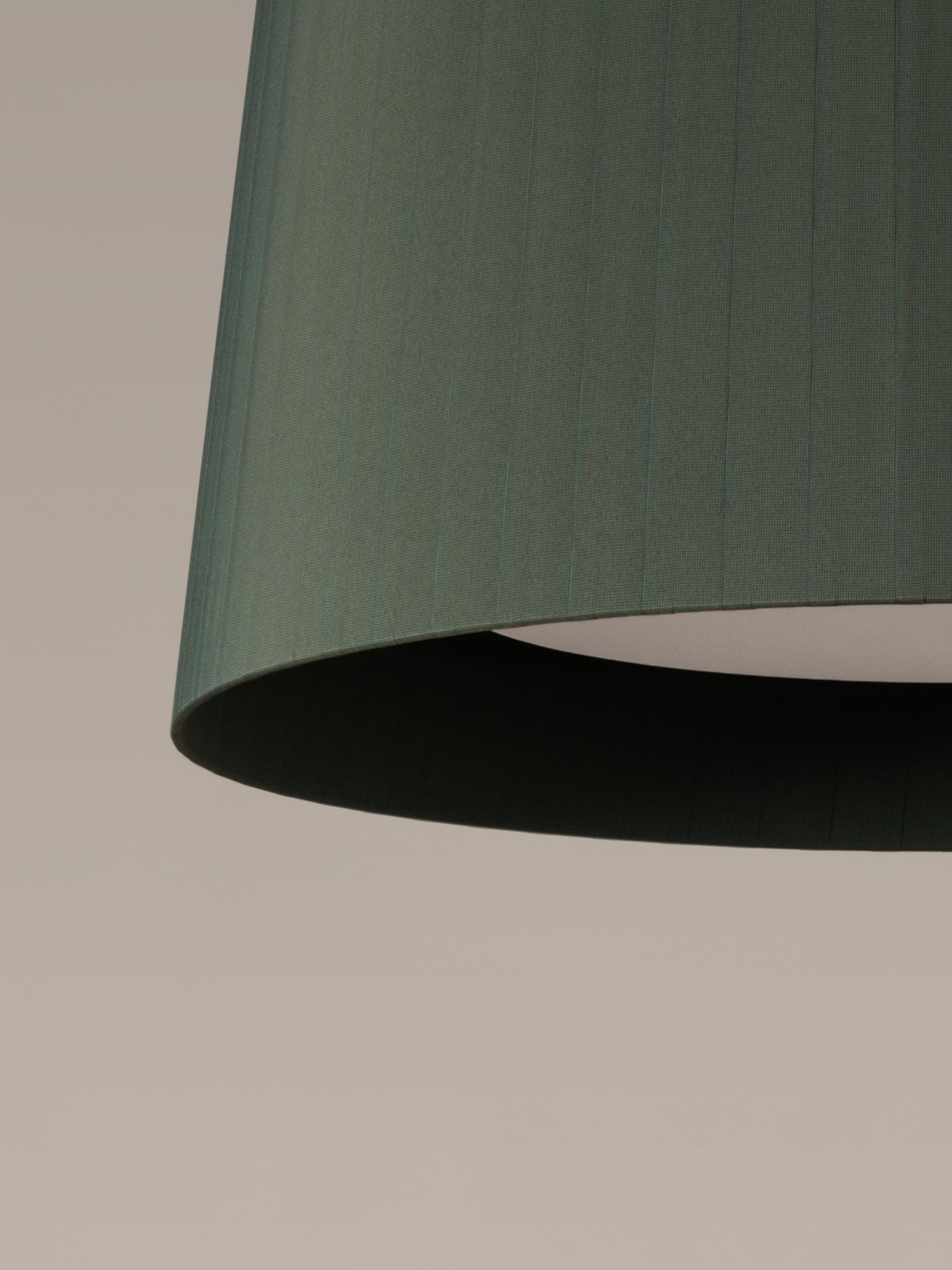

Natural, red-amber or black ribbon lampshade and tile, mustard or green Raw Color ribbon.

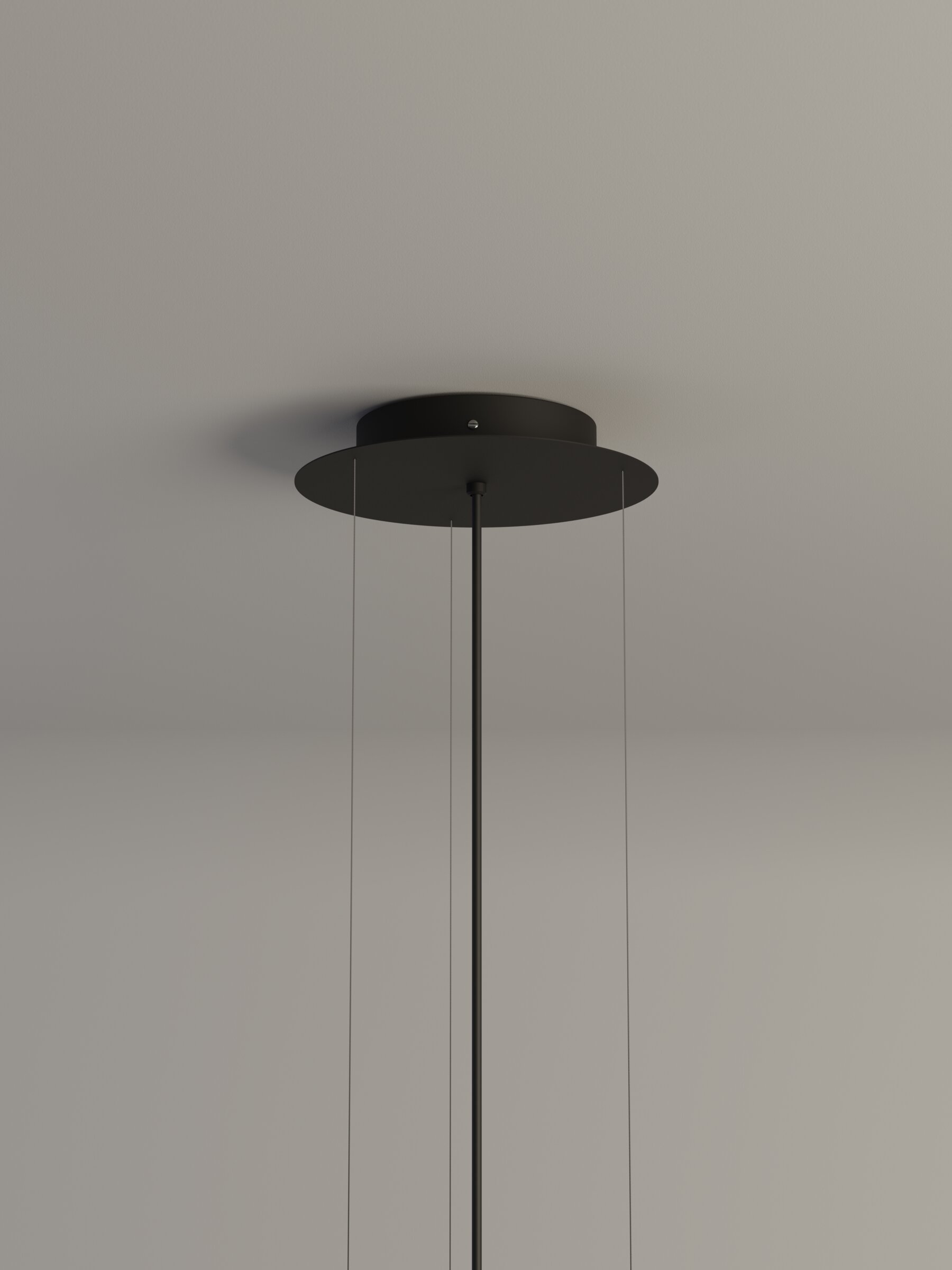

Black metallic circular canopy.Lampshade: upper Ø 90 cm / 35.4” x lower Ø 100 cm / 39.3” x h. 44 cm / 17.3”.
Lower disc in white translucent PVC: Ø 83 cm. / 32.7”.
Suitable for dimming 1-10V. (Not included external dimmer switch 1-10V).
Suitable for Junction Box (UL market).
Electric cable length: 8 m / 315"
Weight: 12 kg / 26.5 lb

Light sources

Light source included (dimmable):
Built-in LED:
Output 78W / Input: 100 ~ 277 Vac.
(50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 6.340 lm
E.E.C. F.

Input voltage: 100 ~ 277 Vac.
(50 Hz / 60 Hz). Según destino.

Dimension plane


Overview

Capsule with LED module, translucent white diffuser and heat sink with matte black finish.

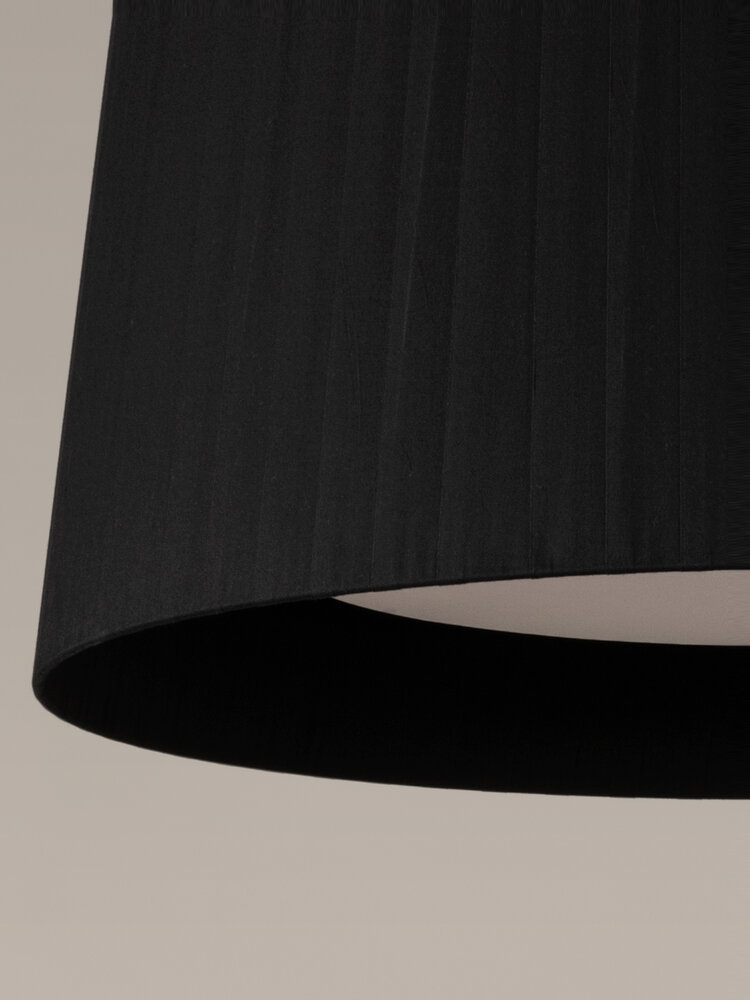

Natural, red-amber or black ribbon lampshade and tile, mustard or green Raw Color ribbon.
Black metallic circular canopy.Lampshade: upper Ø 133 cm / 7.5” x lower Ø 150 cm / 59.1” x h. 74 cm / 29,1”.
Lower disc in white translucent PVC: Ø 125 cm / 49.2".
Suitable for dimming 1-10V. (Not included external dimmer switch 1-10V).
Suitable for Junction Box (UL market).
Electric cable length: 8 m / 315"
Weight: 17 kg / 37.5 lb

Light sources

Light source included (dimmable):
Built-in LED:
Output 78W / Input: 100 ~ 277 Vac.
(50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 6.340 lm
E.E.C. F.

Input voltage: 100 ~ 277 Vac.
(50 Hz / 60 Hz). Según destino.

Available modifications

Flame retardant ribbon.

We offer the possibility of adapting our products to the requirements of your contract project, modifying them to your needs. All customisations shall be studied upon request respecting the minimum quantity required. Contact us for customisations inqueries.
