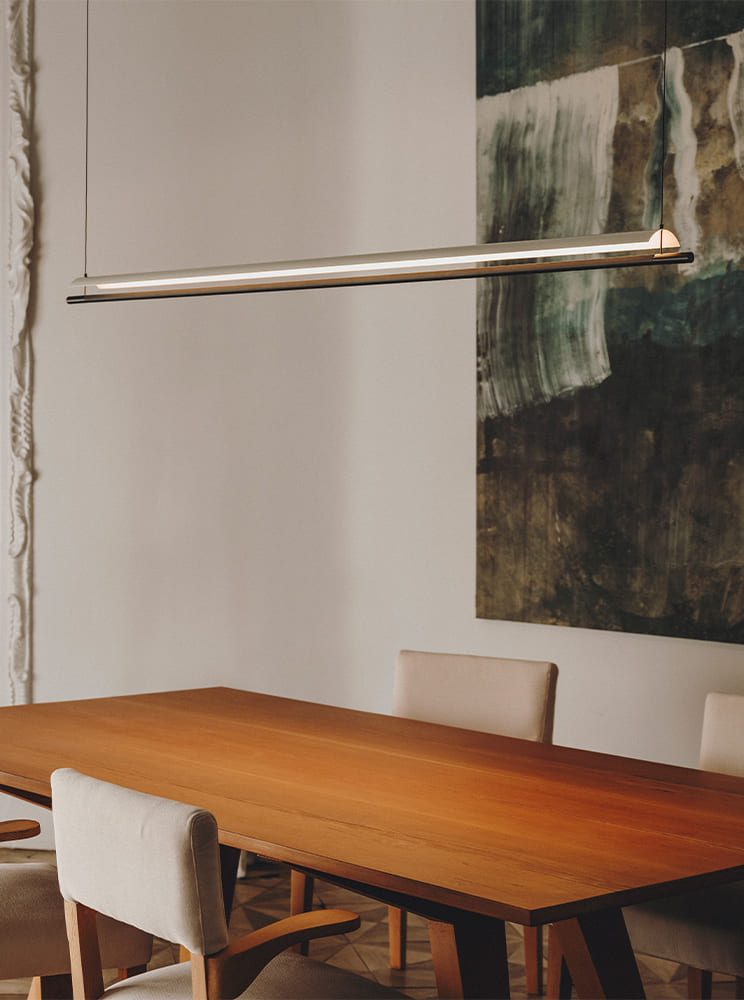

Lámina
A line of light and a thin metal sheet create a soft but effective levity. A marriage of the poetic and the practical, Lámina is a system that upholds the benefits of reflected light by using obvious shapes in different formats and with different shades that conceal nothing and show everything.
Read moreS&C white metallic shade with brilliant finish (exterior).
Polycarbonate diffuser.
Suitable for dimming 0-10V / DALI. (Not included external dimmer switch 0-10V / DALI).Weight: 2,8 Kg / 6.2 lb
Electric cable length: 3 m / 118.1".
Light source included (dimmable)
Drawings
Downloads
Customisations
Available modifications:
Remote driver.
Overview
- Black metal structure with matte finish.
S&C white metallic shade with brilliant finish (exterior).
Polycarbonate diffuser.
Suitable for dimming 0-10V. (Not included external dimmer switch 0-10V). - Weight : 2,8 Kg / 6.2 lb
- Electric cable length: 3 m / 118.1"
Light Sources
- Light source included (dimmable):
- Built-in LED. Output 18W. / Input: 100 ~ 240 Vac. (50 Hz / 60 Hz). According to destination.
- Tª Colour: 2.700 K
- Typical CRI: 90
- Lifetime: 40.000 h
- Luminous flux: 711 lm
Drawings
Downloads
Customisations
Available modifications:
Remote driver.
Overview
- Black metal structure with matte finish.
S&C white metallic shade with brilliant finish (exterior).
Polycarbonate diffuser.
Suitable for dimming 0-10V. (Not included external dimmer switch 0-10V). - Weight (1 module): 4 Kg / 8.8 lb
Weight : - Electric cable length: 3 m / 118.1"
Light Sources
- Light source included (dimmable):
- Built-in LED. Output 31W. / Input: 100 ~ 240 Vac. (50 Hz / 60 Hz). According to destination.
- Tª Colour: 2.700 K
- Typical CRI: 90
- Lifetime: 40.000 h
- Luminous flux: 1.422 lm
Drawings
Downloads
Customisations
Available modifications:
Remote driver.
Overview
- Black metal structure with matte finish.
S&C white metallic shade with brilliant finish (exterior).
Polycarbonate diffuser.
Suitable for dimming 0-10V. (Not included external dimmer switch 0-10V). - Weight : 3,7 Kg / 8.2 lb
- Electric cable length: 3 m / 118.1"
Light Sources
- Light source included (dimmable):
- Built-in LED. Output 31W. / Input: 100 ~ 240 Vac. (50 Hz / 60 Hz). According to destination.
- Tª Colour: 2.700 K
- Typical CRI: 90
- Lifetime: 40.000 h
- Luminous flux: 1.394 lm
Drawings
Downloads
Customisations
Available modifications:
Remote driver.
Overview
- Black metal structure with matte finish.
S&C white metallic shade with brilliant finish (exterior).
Polycarbonate diffuser.
Suitable for dimming 0-10V. (Not included external dimmer switch 0-10V). - Weight (1 module): 6 Kg / 13 lb
Weight : - Electric cable length: 3 m / 118.1"
Light Sources
- Light source included (dimmable):
- Built-in LED. Output 54W. / Input: 100 ~ 240 Vac. (50 Hz / 60 Hz). According to destination.
- Tª Colour: 2.700 K
- Typical CRI: 90
- Lifetime: 40.000 h
- Luminous flux: 2.788 lm
Drawings
Downloads
Customisations
Available modifications:
Remote driver.
Connecting two or more pieces.
Overview
- Black metal structure with matte finish.
S&C white metallic shade with brilliant finish (exterior).
Polycarbonate diffuser.
Suitable for dimming 0-10V. (Not included external dimmer switch 0-10V). - Weight : 3,8 Kg / 8.4 lb
- Electric cable length: 3 m / 118.1"
Light Sources
- Light source included (dimmable):
- Built-in LED. Output 54W. / Input: 100 ~ 240 Vac. (50 Hz / 60 Hz). According to destination.
- Tª Colour: 2.700 K
- Typical CRI: 90
- Lifetime: 40.000 h
- Luminous flux: 1.979 lm
Drawings
Downloads
Customisations
Available modifications:
Remote driver.
Connecting two or more pieces.
Overview
- Black metal structure with matte finish.
S&C white metallic shade with brilliant finish (exterior).
Polycarbonate diffuser.
Suitable for dimming 0-10V. (Not included external dimmer switch 0-10V). - Weight : 12,3 Kg / 27.1 lb
- Electric cable length: 3 m / 118.1"
Light Sources
- Light source included (dimmable):
- Built-in LED. Output 44W. / Input: 100 ~ 240 Vac. (50 Hz / 60 Hz). According to destination.
- Tª Colour: 2.700 K
- Typical CRI: 90
- Lifetime: 40.000 h
- Luminous flux: 1.977 lm

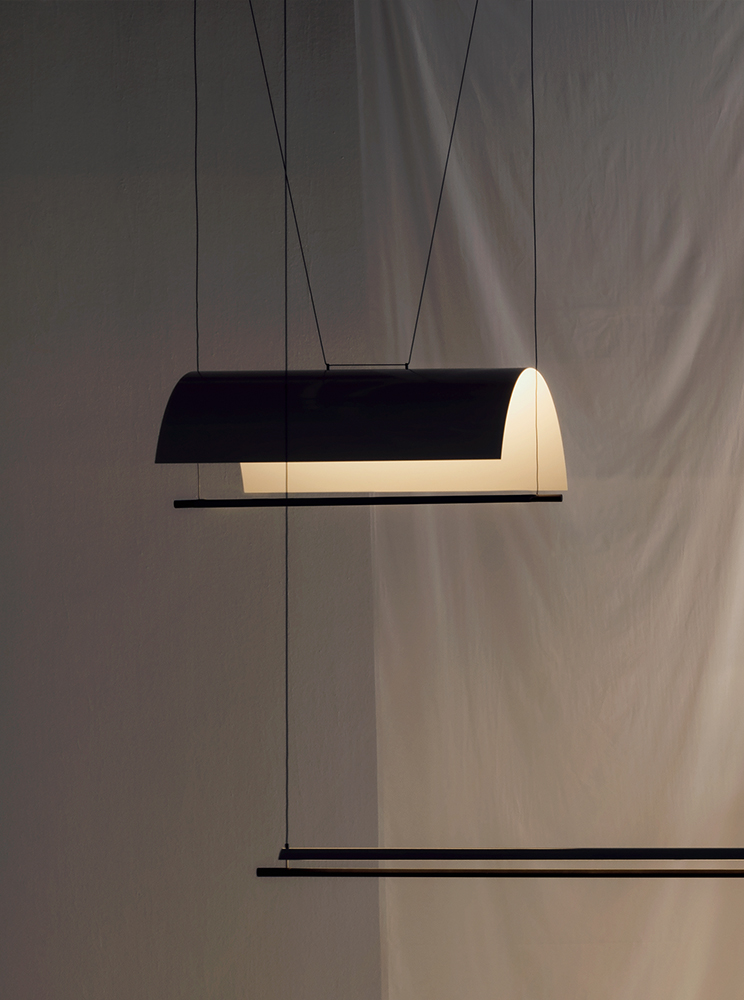

Playing with poetry and reason

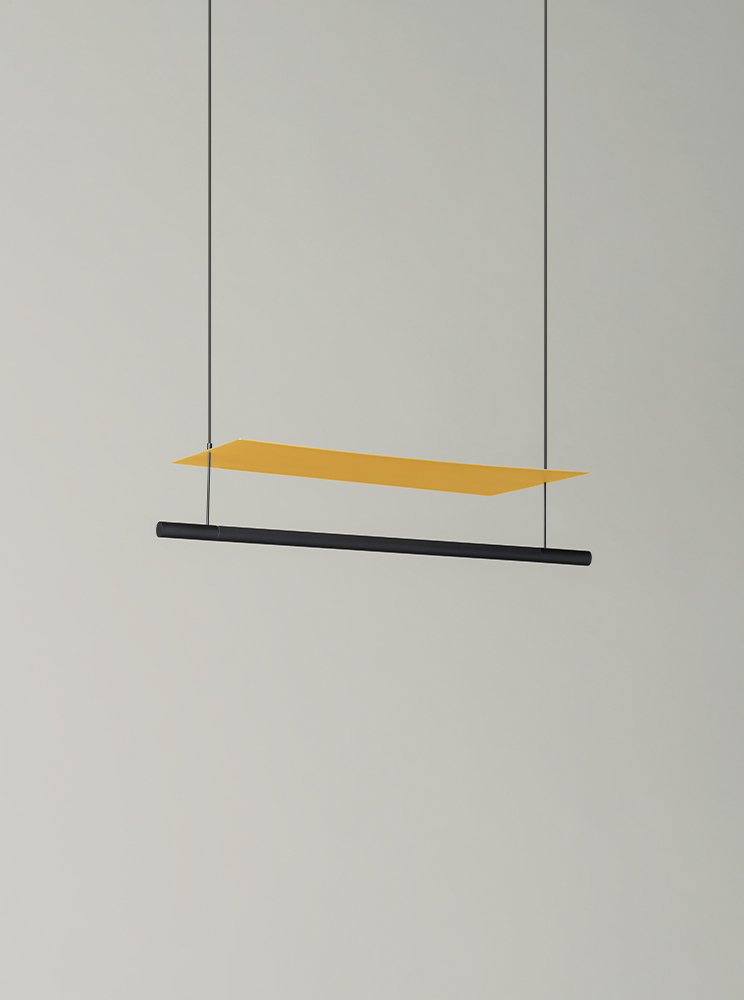

A line of light and a thin metal sheet create a soft and effective diffusion. Lámina exploits the virtues of reflected light with simple, clean lines in varying shades and sizes, laid bare and fully exposed.
This pendant lamp fascinates the eye with the elegance of its curve and soothing light. In 1907, painter Mariano Fortuny Madrazo prolifically used reflective lighting, which he deemed essential to achieve the right colour, with his iconic homonymous lamp.

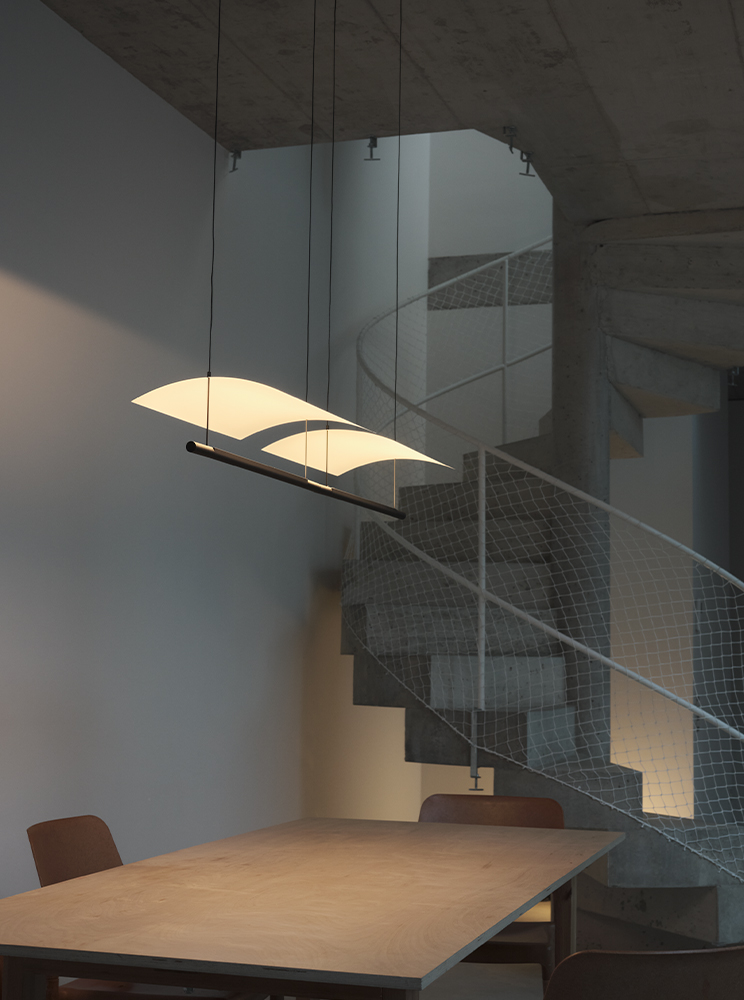

Whether as a single unit or several in sequence, in small or large sizes, Antoni Arola’s combination of formal purity and functional virtue elicits emotion. A marriage of the poetic and the practical; creating a soft and pleasant light, without glare.
.png)
ADI FAD, the Industrial Design Association and Promotion of Art and Design, a reference centre for industrial design in Europe, promotes creative culture by organising the prestigious Delta Awards for Industrial Design. The aim of the Delta Awards is to highlight the excellence of design and emphasize its importance as a tool for generating wealth in an industrial economy.
Each year IF (International Forum Design GmbH) organizes the IF Design awards, recognized worldwide as a symbol of design excellence. Its aim is to draw attention to well-designed industrial products to communicate the importance of design and all that it can achieve for users, brands, and society at large.
Antoni Arola, winner of the 2003 National Design Award, is a distinguished figure of Spain’s current design scene. His versatile work ranges from creating a perfume flacon or a lamp to interior designs of important present-day venues. Arola's evocative approach towards life and space give him an enduring place at Santa & Cole.
