Lámina

Antoni Arola. 2018

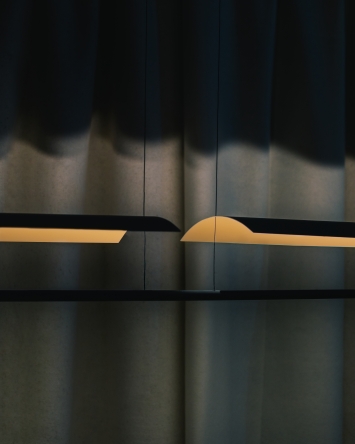

A line of light and a thin sheet, softly but effectively light. Striking a balance between poetry and reason, Lámina is a system that defends the benefits of reflected light with simple, obvious forms, in a range of formats and shades that hide nothing and show everything.

Configure product

Choose model
Lámina 45
Sistema Lámina 45
Lámina 85
Sistema Lámina 85
Lámina 165
Lámina Mayor

Measures

Choose model
Lámina 45
Sistema Lámina 45
Lámina 85
Sistema Lámina 85
Lámina 165
Lámina Mayor

Technical information

Choose model
Lámina 45
Sistema Lámina 45
Lámina 85
Sistema Lámina 85
Lámina 165
Lámina Mayor
Overview
  • IP 20

  • UL listing is in progress. Available soon.

    Black metal structure with matte finish.
    S&C white metallic shade with brilliant finish (exterior).
    Polycarbonate diffuser.
    Suitable for dimming 0-10V. (Not included external dimmer switch 0-10V).
  • Weight : 2,8 Kg / 6.2 lb

Light Sources
  • Light source included (dimmable):
  • Built-in LED. Output 18W. / Input: 100 ~ 240 Vac. (50 Hz / 60 Hz). According to destination.
  • Tª Colour: 2.700 K
  • Typical CRI: 90
  • Lifetime: 40.000 h
  • Luminous flux: 1.800 lm
We adapt our products to your project.
